PMC-0701TH1520
PIC GmbH
PIC GmbH

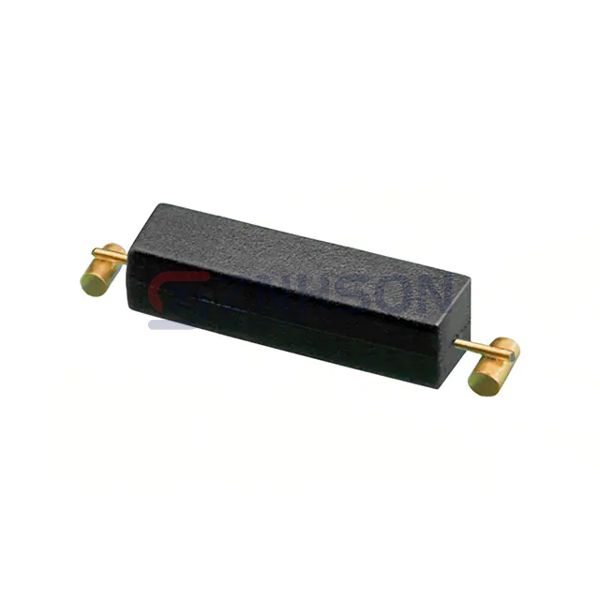

STANDARD SMD REED SWITCH PITCH 1
$2.03
Available to order
Reference Price (USD)
2,500+
$0.79750
5,000+
$0.77000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience unmatched quality with PIC GmbH PMC-0701TH1520 Magnetic Reed Switches. These switches boast high sensitivity, low contact resistance, and a long operational lifespan, making them suitable for automotive sensors, security alarms, and industrial machinery. Choose PIC GmbH for components you can trust. Request a quote now and take the first step toward superior performance!
Specifications
- Product Status: Active
- Type: Molded Body Reed
- Circuit: SPST-NO
- Operate Range: 15 ~ 20AT
- Release Range: 4AT
- Current - Switching: 500mA (AC/DC)
- Voltage - Switching AC: 120 V
- Voltage - Switching DC: 150 V
- Power - Rated: 10W
- Operate Time: 0.3 ms
- Release Time: 0.1 ms
- Mounting Type: Surface Mount
- Termination Style: Axial
- Length - Overall: 0.492" (12.50mm)
- Size - Body: 0.335" L x 0.110" W x 0.098" H (8.50mm x 2.80mm x 2.50mm)
- Height Above Board: -
- Operating Temperature: -40°C ~ 125°C
- Capacitance: -
- Current - Carry: 700mA (AC/DC)
