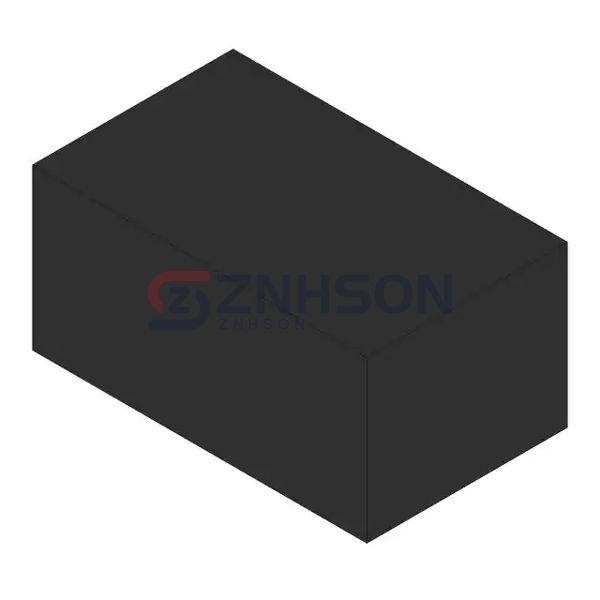

PMZB290UNE,315
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 20V 1A DFN1006B-3
$0.04
Available to order
Reference Price (USD)
10,000+
$0.07035
30,000+
$0.06650
50,000+
$0.05996
100,000+
$0.05880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with PMZB290UNE,315, a premium Transistors - FETs, MOSFETs - Single from NXP USA Inc.. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust PMZB290UNE,315 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 380mOhm @ 500mA, 4.5V
- Vgs(th) (Max) @ Id: 950mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.68 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 83 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 360mW (Ta), 2.7W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN1006B-3
- Package / Case: SC-101, SOT-883
