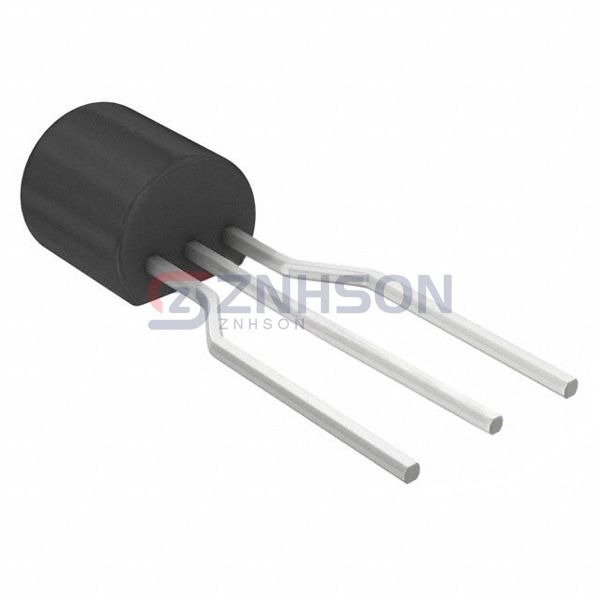

PN3563_D74Z
onsemi
onsemi
RF TRANS NPN 15V 1.5GHZ TO92-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve peak RF performance with PN3563_D74Z transistors by onsemi. These BJT components combine high breakdown voltage with superior thermal management, catering to power amplifier stages and frequency multipliers. Trusted in defense and commercial sectors alike. Take the next step inquire about customization options and lead times!
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Voltage - Collector Emitter Breakdown (Max): 15V
- Frequency - Transition: 1.5GHz
- Noise Figure (dB Typ @ f): -
- Gain: 14dB ~ 26dB
- Power - Max: 350mW
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 8mA, 10V
- Current - Collector (Ic) (Max): 50mA
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Supplier Device Package: TO-92-3
