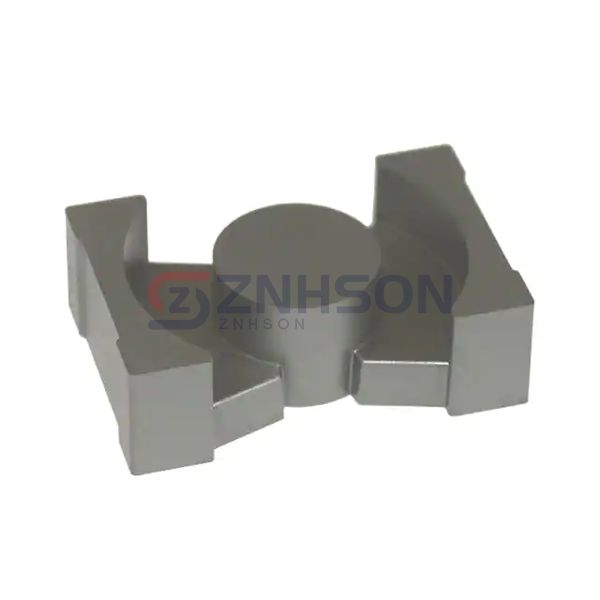

PQ20/16-3C97
Ferroxcube
Ferroxcube
FERRITE CORE 2PC SET
$1.91
Available to order
Reference Price (USD)
1+
$1.45000
10+
$1.30400
25+
$0.96560
50+
$0.91740
100+
$0.82090
250+
$0.77256
500+
$0.72430
1,000+
$0.62772
5,000+
$0.60358
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with Ferroxcube PQ20/16-3C97 Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 20 x 16
- Material: 3C97
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -
- Gap: -
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: -
- Effective Length (le) mm: -
- Effective Area (Ae) mm²: -
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: -
- Finish: Uncoated
- Height: 0.638" (16.20mm)
- Length: 0.839" (21.30mm)
- Width: 0.551" (14.00mm)
