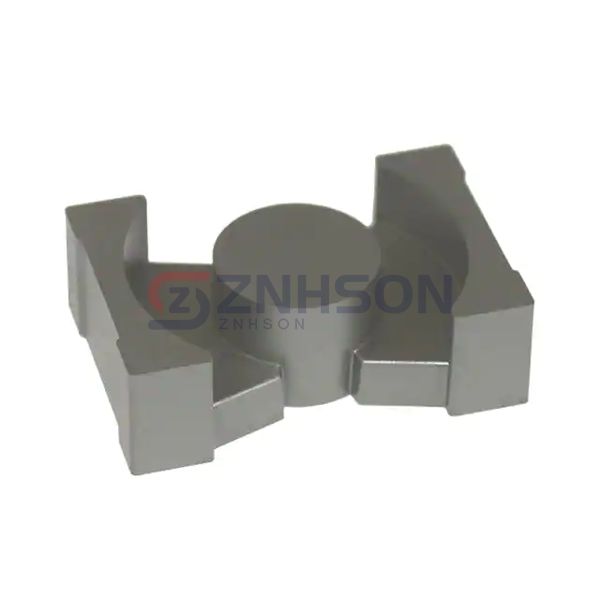

PQ26/20-3F36
Ferroxcube
Ferroxcube
FERRITE CORE 2PC SET
$3.08
Available to order
Reference Price (USD)
1+
$2.42000
10+
$2.08700
25+
$1.58560
50+
$1.50220
100+
$1.33540
250+
$1.25192
500+
$1.16846
1,000+
$1.07247
5,000+
$1.04326
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Invest in reliability with Ferroxcube PQ26/20-3F36 Ferrite Cores, tailored for high-efficiency power transfer and noise reduction. These cores are ideal for use in resonant circuits, pulse transformers, and EMI filters. Their high saturation flux density and minimal eddy current loss make them a top choice for power electronics. From industrial machinery to consumer gadgets, our Ferrite Cores ensure peak performance. Contact us for a detailed quote and technical support!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 26 x 20
- Material: 3F36
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -
- Gap: -
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: -
- Effective Length (le) mm: -
- Effective Area (Ae) mm²: -
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: -
- Finish: Uncoated
- Height: 0.795" (20.20mm)
- Length: 1.075" (27.30mm)
- Width: 0.748" (19.00mm)
