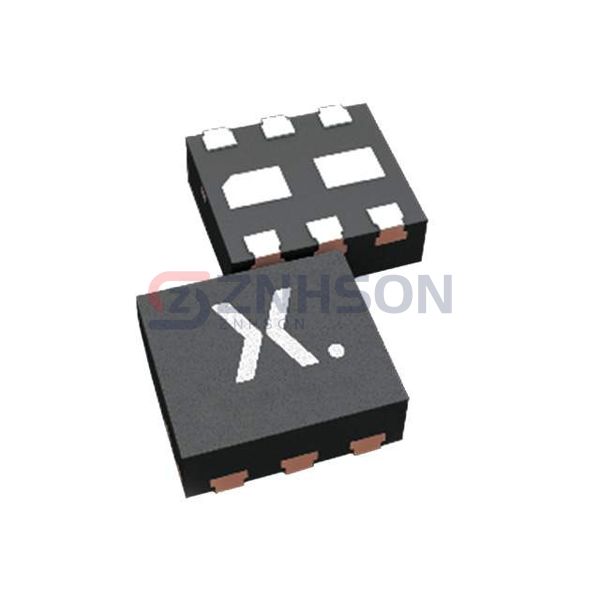

PRMD13Z
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS 1NPN 1PNP 50V 6DFN
$0.37
Available to order
Reference Price (USD)
5,000+
$0.05060
10,000+
$0.04301
25,000+
$0.04048
50,000+
$0.03795
125,000+
$0.03289
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Nexperia USA Inc.'s PRMD13Z BJT Array solution, offering pre-configured biasing for immediate implementation. These transistor arrays excel in switching and linear applications where space and efficiency are critical. The product series demonstrates superior characteristics: thermal shutdown protection, high-frequency response, and ESD protection for durable performance. Commonly deployed in battery-powered devices, motor controllers, and audio amplifiers across multiple industries. Nexperia USA Inc. combines decades of semiconductor experience with cutting-edge manufacturing techniques. Don't compromise on quality request samples or volume pricing for PRMD13Z through our quick inquiry system!
Specifications
- Product Status: Active
- Transistor Type: 1 NPN Pre-Biased, 1 PNP
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 1µA
- Frequency - Transition: 230MHz
- Power - Max: 480mW
- Mounting Type: Surface Mount
- Package / Case: 6-XFDFN Exposed Pad
- Supplier Device Package: DFN1412-6
Related Products
onsemi
NSBC114EPDXVT1G
Nexperia USA Inc.
PBLS4005D,115
Diodes Incorporated
ACX143ZUQ-13R
Nexperia USA Inc.
PBLS4002Y,115
Panasonic Electronic Components
DMC561050R
Toshiba Semiconductor and Storage
RN1963FE(TE85L,F)
Rohm Semiconductor

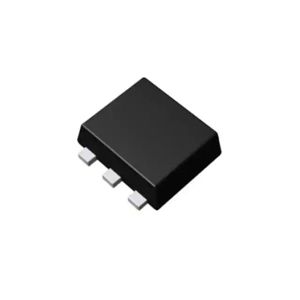

UMH37NTN
