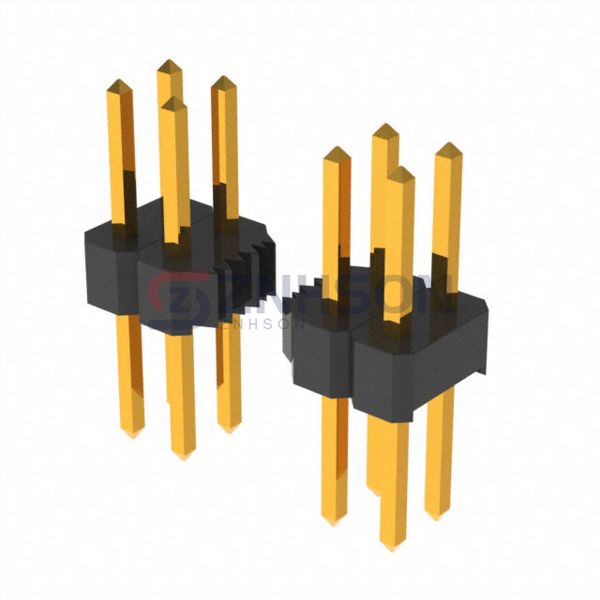

PRPC008DABN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 16POS 2.54MM
$0.45
Available to order
Reference Price (USD)
1+
$0.45000
10+
$0.42300
25+
$0.38040
50+
$0.33820
100+
$0.32400
250+
$0.29584
500+
$0.28176
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with PRPC008DABN-RC Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.230" (5.84mm)
- Overall Contact Length: 0.558" (14.18mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-350944-0
Samtec Inc.
FTSH-108-01-F-D-RA-K
Samtec Inc.
TFM-125-32-S-D-LC
Samtec Inc.
TMM-110-04-T-S
Harwin Inc.
M80-5421822
Amphenol ICC (FCI)
95278-801A26LF
Samtec Inc.
TMS-141-02-SM-D
Samtec Inc.
EHF-110-01-L-D-SM-P-TR
Amphenol ICC (FCI)

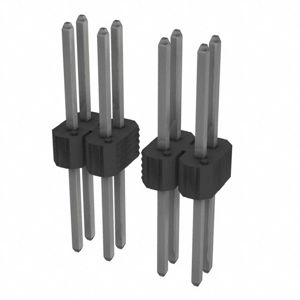

68779-420HLF
