PRPC020DAAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 40POS 2.54MM
$0.90
Available to order
Reference Price (USD)
1+
$0.90000
10+
$0.78900
25+
$0.74320
50+
$0.71200
100+
$0.68110
250+
$0.61920
500+
$0.55728
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with PRPC020DAAN-RC Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
76384-315LF
TE Connectivity AMP Connectors
2-1761608-5
Samtec Inc.
TSW-106-08-L-D-RA
Samtec Inc.
HTSW-103-08-T-S

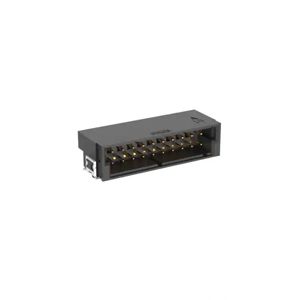

TE Connectivity Erni
