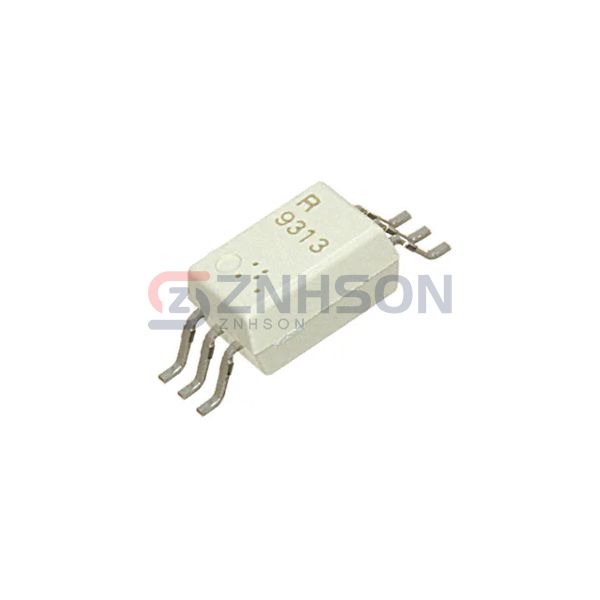

PS9306L-AX
Renesas Electronics America Inc
Renesas Electronics America Inc
OPTOISO 5KV GATE DRIVER 6SDIP GW
$2.22
Available to order
Reference Price (USD)
1+
$2.22111
500+
$2.1988989
1000+
$2.1766878
1500+
$2.1544767
2000+
$2.1322656
2500+
$2.1100545
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your system s efficiency with Renesas Electronics America Inc PS9306L-AX Gate Driver Isolators, built for rugged industrial environments. Highlights include high-speed data transfer, thermal shutdown protection, and robust construction. Ideal for servo drives, renewable energy converters, and medical devices, these isolators deliver consistent performance. Let s discuss your needs reach out today!
Specifications
- Product Status: Not For New Designs
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 400ns, 400ns
- Pulse Width Distortion (Max): 250ns
- Rise / Fall Time (Typ): 50ns, 50ns
- Current - Output High, Low: 400mA, 400mA
- Current - Peak Output: 600mA
- Voltage - Forward (Vf) (Typ): 1.56V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 10V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.268", 6.80mm Width)
- Supplier Device Package: 6-SDIP Gull Wing
- Approval Agency: CSA, SEMKO, UL
Related Products
Skyworks Solutions Inc.
SI8274GB4D-IS1R
Renesas Electronics America Inc
PS9308L2-AX
Skyworks Solutions Inc.
SI8230AD-D-IS
onsemi
NCD57090FDWR2G
Skyworks Solutions Inc.
SI8285BD-ISR
Texas Instruments
UCC21540DW
Texas Instruments
UCC23514MDWV
Infineon Technologies
1EDI20I12AHXUMA1
Skyworks Solutions Inc.

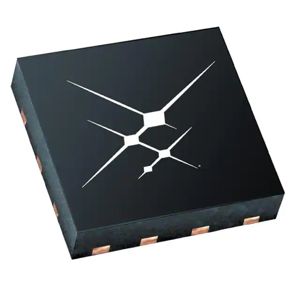

SI8233BB-D-IMR
