PS9505-V-AX
Renesas Electronics America Inc
Renesas Electronics America Inc
OPTOISO 5KV 1CH GATE DRIVER 8DIP
$2.22
Available to order
Reference Price (USD)
1+
$2.22110
500+
$2.198889
1000+
$2.176678
1500+
$2.154467
2000+
$2.132256
2500+
$2.110045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust Renesas Electronics America Inc PS9505-V-AX Gate Driver Isolators for unmatched isolation performance in critical applications. These isolators feature wide input voltage range, high surge immunity, and compact footprints, making them perfect for automotive, defense, and IoT applications. Depend on us for quality and innovation request a quote now!
Specifications
- Product Status: Not For New Designs
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 250ns, 250ns
- Pulse Width Distortion (Max): 100ns
- Rise / Fall Time (Typ): 50ns, 50ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.56V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- Approval Agency: CSA, SEMKO, UL, VDE
Related Products
Skyworks Solutions Inc.

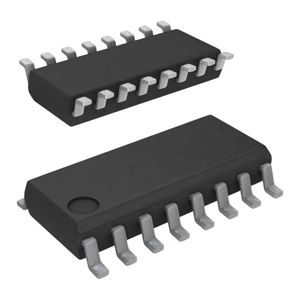

SI8275DBD-IS1R
Broadcom Limited
ACPL-P346-000E
Skyworks Solutions Inc.
SI8235AD-D-IS
Broadcom Limited
HCPL-T251-300E
Vishay Semiconductor Opto Division

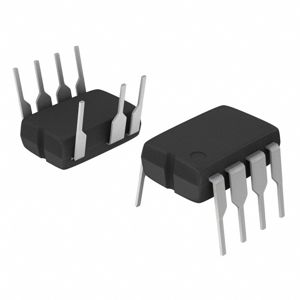

VO3120-X001
Broadcom Limited
ACPL-38JT-500E
onsemi

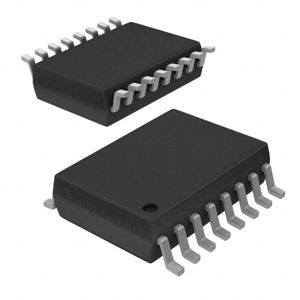

FOD8333R2V
