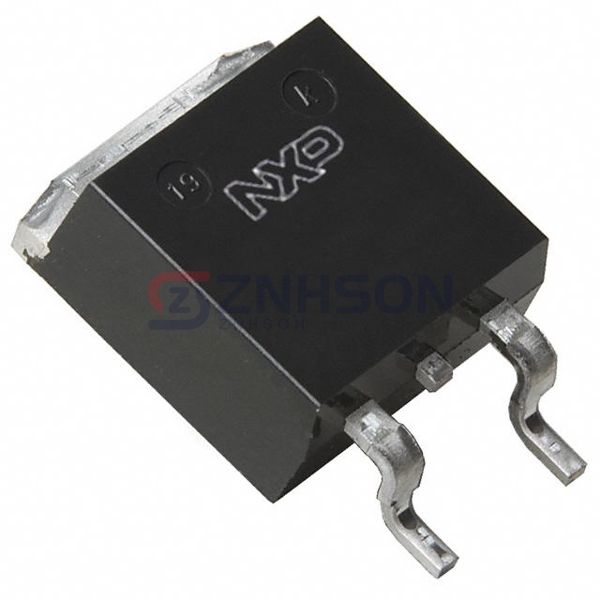

PSMN1R5-30BLEJ
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 30V 120A D2PAK
$4.33
Available to order
Reference Price (USD)
800+
$1.70065
1,600+
$1.58728
2,400+
$1.50791
5,600+
$1.45123
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose PSMN1R5-30BLEJ by Nexperia USA Inc.. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with PSMN1R5-30BLEJ inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.5mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2.15V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 228 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 14934 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 401W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
