PSMN4R2-80YSEX
Nexperia USA Inc.
Nexperia USA Inc.

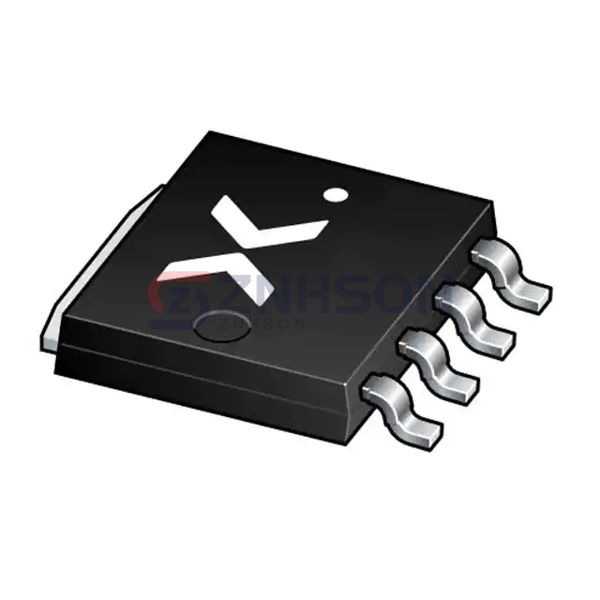

PSMN4R2-80YSE/SOT1023/4 LEADS
$4.52
Available to order
Reference Price (USD)
1+
$4.52000
500+
$4.4748
1000+
$4.4296
1500+
$4.3844
2000+
$4.3392
2500+
$4.294
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover PSMN4R2-80YSEX, a versatile Transistors - FETs, MOSFETs - Single solution from Nexperia USA Inc., a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 170A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.2mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 110 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 8000 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 294W (Ta)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SOT-1023, 4-LFPAK
