PUMD2/DG/B4F
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS 1NPN 1PNP 6TSSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience precision engineering with Nexperia USA Inc.'s PUMD2/DG/B4F Bipolar Junction Transistor Arrays, the optimal solution for space-efficient designs. These pre-biased components eliminate external resistor needs while providing predictable performance in amplification and switching roles. Application sectors include automotive electronics, power tools, and renewable energy systems where reliability is paramount. The product family offers multiple configuration options, all featuring low quiescent current, high gain bandwidth product, and robust EMC performance. Nexperia USA Inc. provides comprehensive technical resources for PUMD2/DG/B4F integration. Take the next step request a quote or design consultation through our convenient inquiry portal!
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 22kOhms
- Resistor - Emitter Base (R2): 22kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 60 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 150mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA
- Frequency - Transition: 230MHz, 180MHz
- Power - Max: 300mW
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: 6-TSSOP
Related Products
Panasonic Electronic Components
DMG563020R
Panasonic Electronic Components
XP0111100L
Infineon Technologies
BCR133SE6327BTSA1
Infineon Technologies
BCR133SE6433BTMA1
Panasonic Electronic Components
DMG964H10R
Panasonic Electronic Components
DMA261020R
Infineon Technologies
BCR133SB6327XT
Panasonic Electronic Components
XP0338300L
onsemi

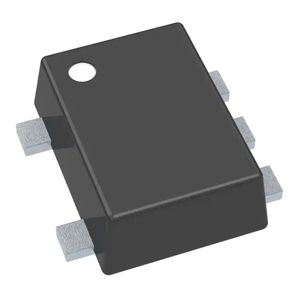

NSTB1002DXV5T1
