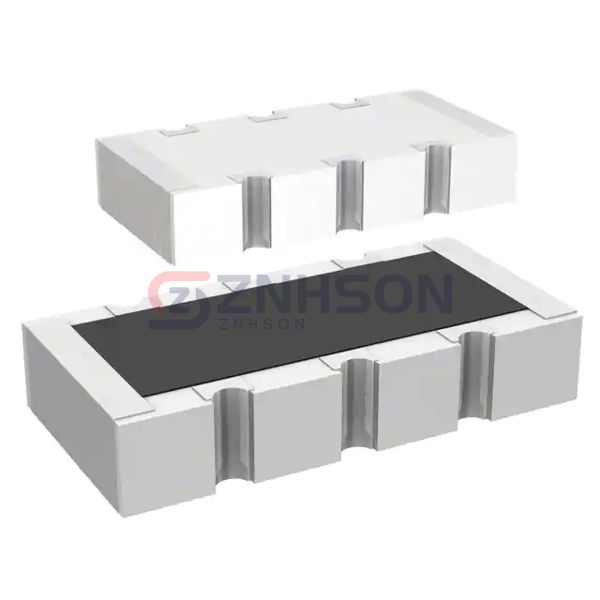

RAVF164DJT5R60
Stackpole Electronics Inc
Stackpole Electronics Inc
RES ARRAY 4 RES 5.6 OHM 1206
$0.01
Available to order
Reference Price (USD)
5,000+
$0.00570
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Stackpole Electronics Inc's RAVF164DJT5R60 resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every RAVF164DJT5R60 unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 5.6
- Tolerance: ±5%
- Number of Resistors: 4
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 8
- Power Per Element: 100mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Applications: Automotive AEC-Q200
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric), Convex, Long Side Terminals
- Supplier Device Package: -
- Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max): 0.024" (0.60mm)
Related Products
Bourns Inc.
4608X-102-132LF
Panasonic Electronic Components
EXB-34V5R6JV
Vishay Dale Thin Film
ORNTV50021002T0
CTS Resistor Products
767163470GP
Stackpole Electronics Inc
RACF164DZT0R00
Analog Devices Inc.
LT5400AHMS8E-4#TRPBF
YAGEO

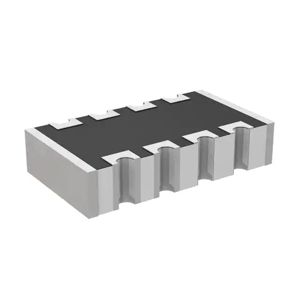

TC164-JR-0715KL
Vishay Dale

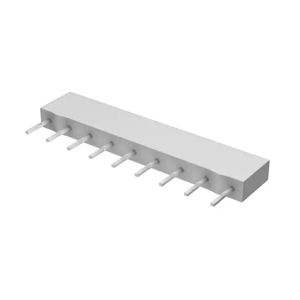

MSP10A0310K0FEJ
Susumu

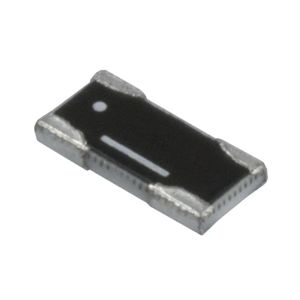

RM3216B-202/403-PBVW10
