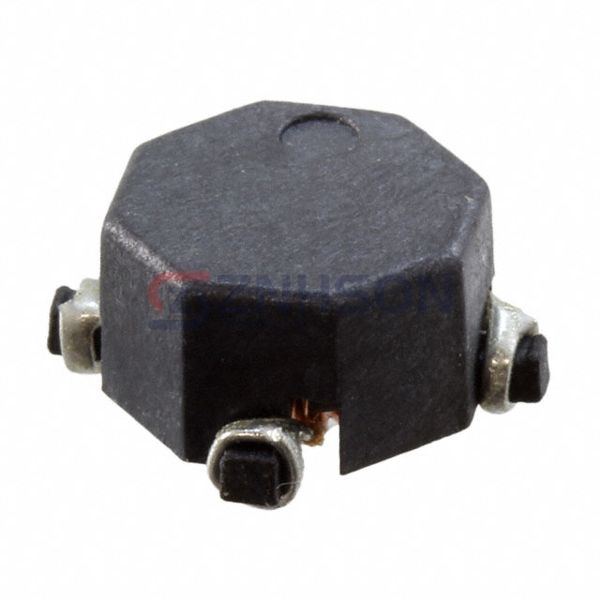

SCX114-200
Signal Transformer
Signal Transformer
INDUCT ARRAY 2 COIL 20UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with SCX114-200 Signal Transformer Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 20 µH
- Inductance - Connected In Series: 81.83 µH
- Tolerance: ±20%
- Current Rating - Parallel: 1 A
- Current Rating - Series: 500 mA
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 159mOhm Max
- DC Resistance (DCR) - Series: 634mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.461" L x 0.461" W (11.70mm x 11.70mm)
- Height: 0.217" (5.50mm)
Related Products
Pulse Electronics Power
PF0552.332NLT
Eaton - Electronics Division
CTX25-2A-R
Eaton - Electronics Division
CTX2-2A-R
Eaton - Electronics Division
CTX150-4
COILCRAFT

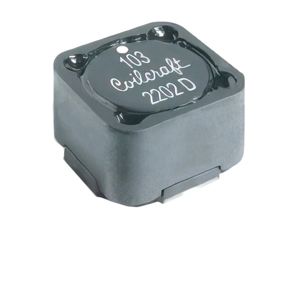

MSD1278H-273MED
