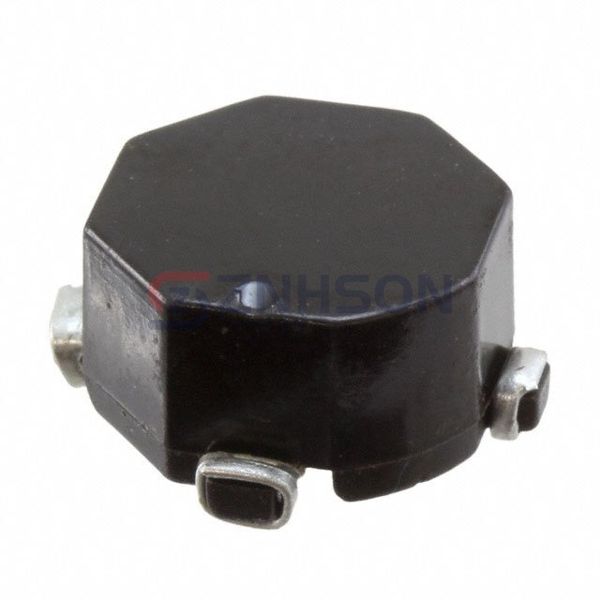

SCX147-0R8
Signal Transformer
Signal Transformer
INDUCT ARRAY 2 COIL 800NH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with SCX147-0R8 Signal Transformer Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Obsolete
- Number of Coils: 2
- Inductance - Connected In Parallel: 800 nH
- Inductance - Connected In Series: 3.14 µH
- Tolerance: ±20%
- Current Rating - Parallel: 6 A
- Current Rating - Series: 3 A
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 5mOhm Max
- DC Resistance (DCR) - Series: 20mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.567" L x 0.567" W (14.40mm x 14.40mm)
- Height: 0.276" (7.00mm)
Related Products
Bourns Inc.
PM3602-5-B
Signal Transformer
SCX114-250
Bourns Inc.

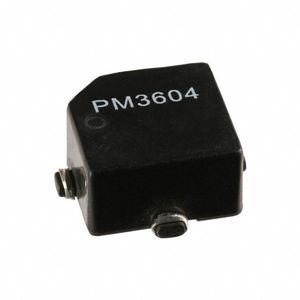

PM3604-200-B-RC
