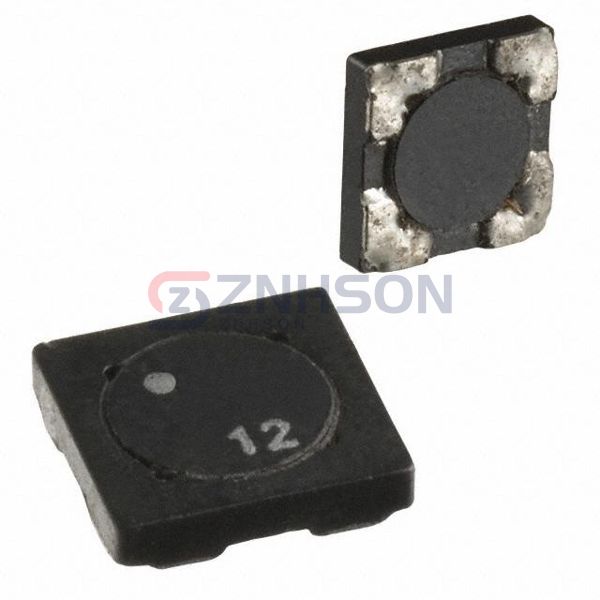

SDQ12-100-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 9.61UH SMD
$3.97
Available to order
Reference Price (USD)
1+
$3.97000
500+
$3.9303
1000+
$3.8906
1500+
$3.8509
2000+
$3.8112
2500+
$3.7715
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SDQ12-100-R Eaton - Electronics Division Inductors, Coils, and Chokes are your go-to solution for high-performance Arrays and Signal Transformers. Featuring excellent EMI suppression and wide operating temperature ranges, they are perfect for IoT devices, automotive systems, and industrial automation. Let us help you find the perfect fit for your needs contact us today for expert advice and a detailed proposal!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 9.61 µH
- Inductance - Connected In Series: 38.44 µH
- Tolerance: ±20%
- Current Rating - Parallel: 831 mA
- Current Rating - Series: 416 mA
- Current Saturation - Parallel: 981 mA
- Current Saturation - Series: 490 mA
- DC Resistance (DCR) - Parallel: 362mOhm
- DC Resistance (DCR) - Series: 1.45Ohm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.047" (1.19mm)
