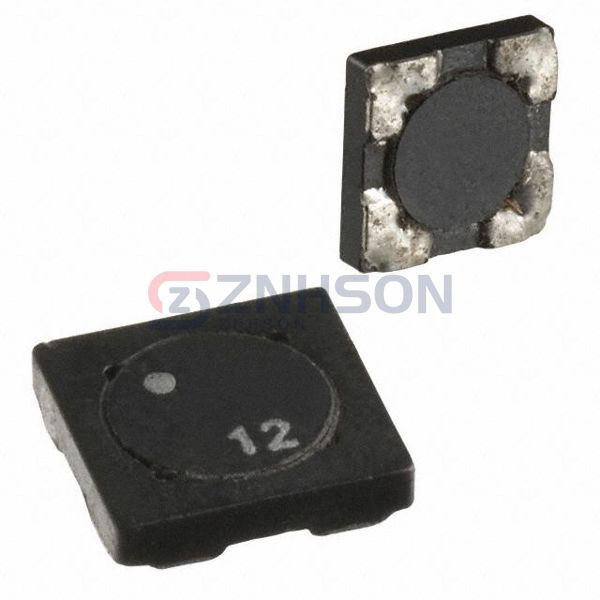

SDQ12-1R0-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 810NH SMD
$1.81
Available to order
Reference Price (USD)
1+
$1.81000
500+
$1.7919
1000+
$1.7738
1500+
$1.7557
2000+
$1.7376
2500+
$1.7195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SDQ12-1R0-R Eaton - Electronics Division Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 810 nH
- Inductance - Connected In Series: 3.24 µH
- Tolerance: ±20%
- Current Rating - Parallel: 2.49 A
- Current Rating - Series: 1.25 A
- Current Saturation - Parallel: 3.38 A
- Current Saturation - Series: 1.69 A
- DC Resistance (DCR) - Parallel: 40.3mOhm
- DC Resistance (DCR) - Series: 161.1mOhm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.047" (1.19mm)
