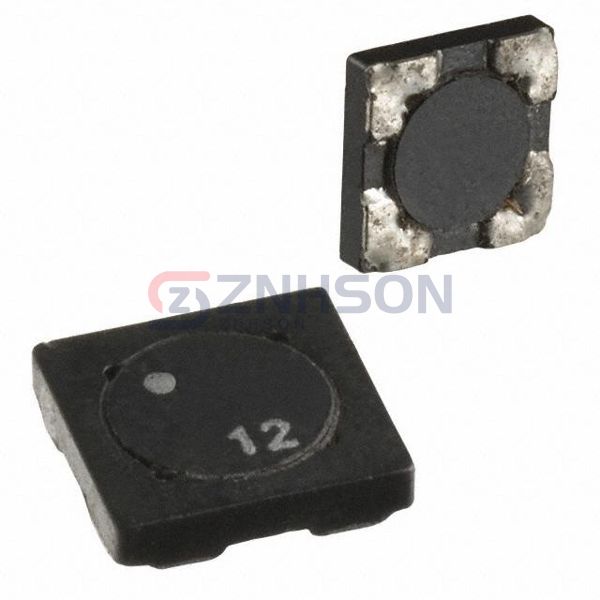

SDQ12-2R2-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 2.25UH SMD
$1.98
Available to order
Reference Price (USD)
1+
$1.97925
500+
$1.9594575
1000+
$1.939665
1500+
$1.9198725
2000+
$1.90008
2500+
$1.8802875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with SDQ12-2R2-R Eaton - Electronics Division Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 2.25 µH
- Inductance - Connected In Series: 9 µH
- Tolerance: ±20%
- Current Rating - Parallel: 1.6 A
- Current Rating - Series: 800 mA
- Current Saturation - Parallel: 2.03 A
- Current Saturation - Series: 1.01 A
- DC Resistance (DCR) - Parallel: 97.7mOhm
- DC Resistance (DCR) - Series: 390.8mOhm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.047" (1.19mm)
Related Products
Signal Transformer
CL-25-50
Eaton - Electronics Division

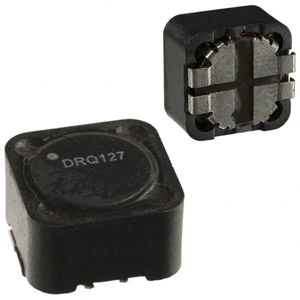

DRQ127-6R8-R
Eaton - Electronics Division

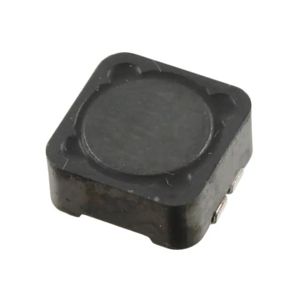

DRQ125-R47-R
Bourns Inc.

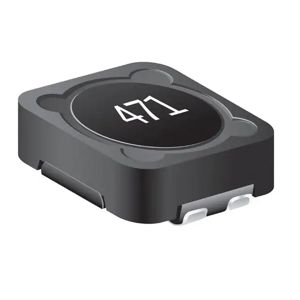

SRF0703-R33M
Würth Elektronik

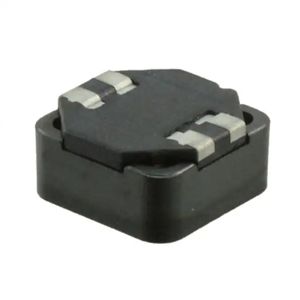

744874100
Würth Elektronik
744871470
EPCOS - TDK Electronics

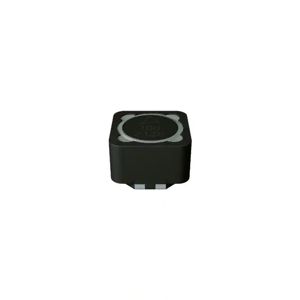

B82477D4202M000
Würth Elektronik

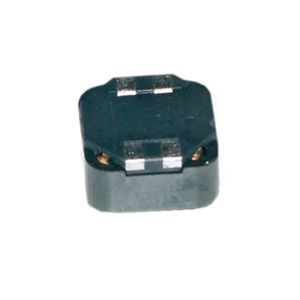

7448709330
API Delevan Inc.

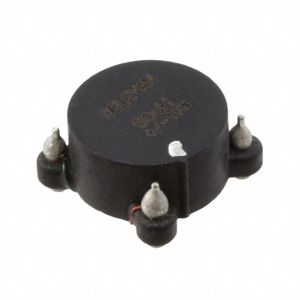

4448R-16L
