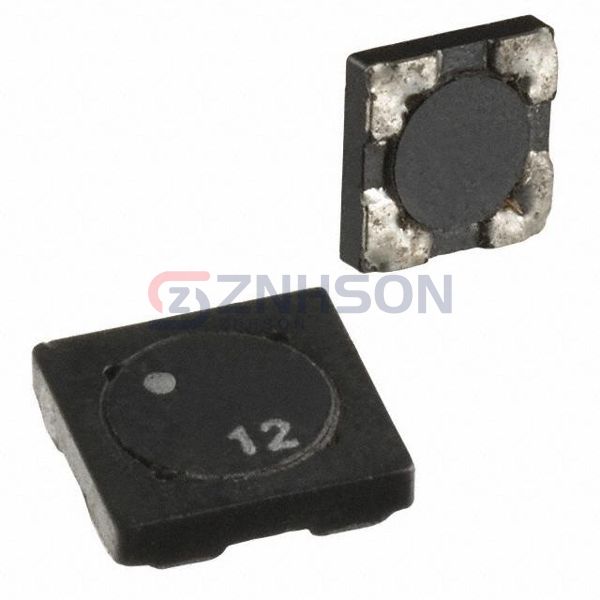

SDQ12-R47-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 490NH SMD
$2.15
Available to order
Reference Price (USD)
1+
$2.14673
500+
$2.1252627
1000+
$2.1037954
1500+
$2.0823281
2000+
$2.0608608
2500+
$2.0393935
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SDQ12-R47-R Eaton - Electronics Division Inductors, Coils, and Chokes are engineered to meet the highest industry standards. Our Arrays and Signal Transformers feature compact designs, high inductance values, and excellent thermal stability, suitable for consumer electronics and medical devices. Whether you need bulk orders or customized specifications, we ve got you covered. Don t hesitate request a quote today and experience top-tier quality!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 490 nH
- Inductance - Connected In Series: 1.96 µH
- Tolerance: ±30%
- Current Rating - Parallel: 2.78 A
- Current Rating - Series: 1.39 A
- Current Saturation - Parallel: 4.34 A
- Current Saturation - Series: 2.17 A
- DC Resistance (DCR) - Parallel: 32.5mOhm
- DC Resistance (DCR) - Series: 129.8mOhm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.047" (1.19mm)
