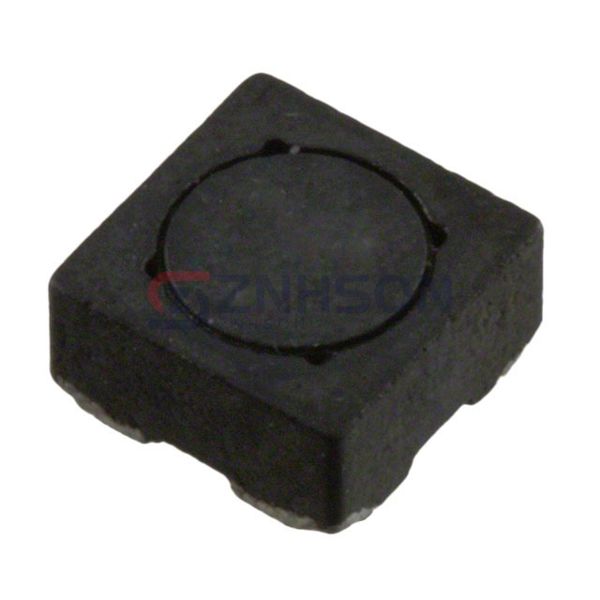

SDQ25-680-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 69.19UH SMD
$2.50
Available to order
Reference Price (USD)
1+
$2.49690
500+
$2.471931
1000+
$2.446962
1500+
$2.421993
2000+
$2.397024
2500+
$2.372055
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency with SDQ25-680-R Eaton - Electronics Division Inductors, Coils, and Chokes, tailored for Arrays and Signal Transformers. These components boast low core loss, high saturation current, and robust construction, ideal for aerospace, defense, and renewable energy applications. Trust in our reliable products to meet your technical requirements. Get in touch now for competitive pricing and fast delivery!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 69.19 µH
- Inductance - Connected In Series: 276.8 µH
- Tolerance: ±20%
- Current Rating - Parallel: 603 mA
- Current Rating - Series: 302 mA
- Current Saturation - Parallel: 484 mA
- Current Saturation - Series: 242 mA
- DC Resistance (DCR) - Parallel: 686.5mOhm
- DC Resistance (DCR) - Series: 2.75Ohm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.098" (2.50mm)
