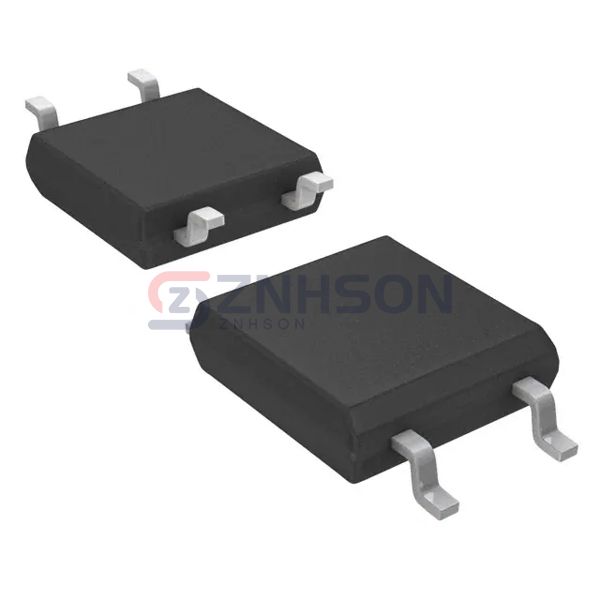

SFH690ABT
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 3.75KV TRANS 4-SOP
$0.71
Available to order
Reference Price (USD)
2,000+
$0.21560
6,000+
$0.20790
10,000+
$0.20482
50,000+
$0.19250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's reliability with SFH690ABT Optoisolators by Vishay Semiconductor Opto Division, featuring advanced Photovoltaic Output technology. Perfect for use in audio equipment, lighting controls, and instrumentation, these isolators deliver high voltage isolation and low signal distortion. Vishay Semiconductor Opto Division guarantees components that meet rigorous industry standards. Don't wait get in touch today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 300% @ 5mA
- Turn On / Turn Off Time (Typ): 5µs, 3µs
- Rise / Fall Time (Typ): 3µs, 4µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.15V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SOP (2.54mm)
