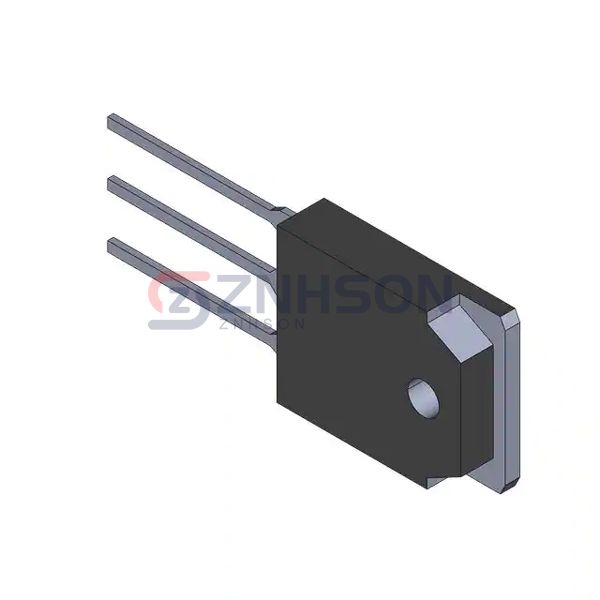

SGH20N60RUFDTU-FS
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 32A, 600V, N-CHANNEL
$2.08
Available to order
Reference Price (USD)
1+
$2.08000
500+
$2.0592
1000+
$2.0384
1500+
$2.0176
2000+
$1.9968
2500+
$1.976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose SGH20N60RUFDTU-FS Single IGBTs by Fairchild Semiconductor for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. Fairchild Semiconductor's reputation for quality makes SGH20N60RUFDTU-FS a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 32 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 20A
- Power - Max: 195 W
- Switching Energy: 524µJ (on), 473µJ (off)
- Input Type: Standard
- Gate Charge: 80 nC
- Td (on/off) @ 25°C: 30ns/48ns
- Test Condition: 300V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
