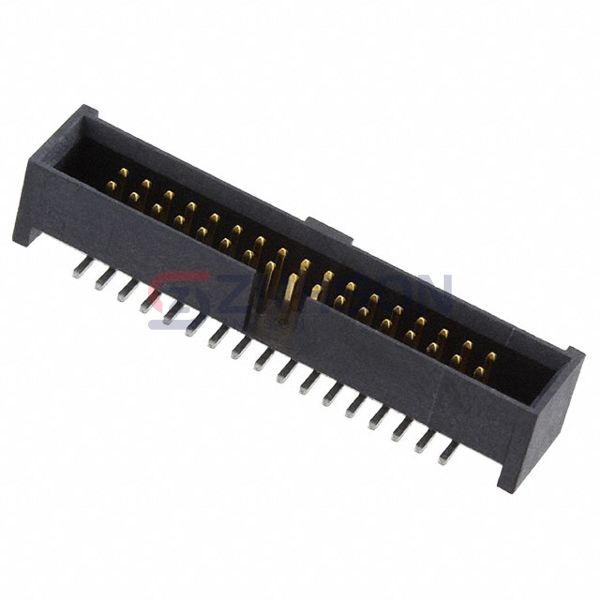

SHF-117-01-S-D-SM
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 34POS 1.27MM
$11.86
Available to order
Reference Price (USD)
1+
$7.75000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with SHF-117-01-S-D-SM Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Samtec Inc. has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.210" (5.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TST-105-03-L-D
TE Connectivity AMP Connectors
3-1445051-0
Samtec Inc.
TSM-104-02-L-SH-K
Amphenol ICC (FCI)
68771-436HLF
Molex
0768290104
TE Connectivity AMP Connectors
4-103777-0-04
Preci-Dip
890-70-031-10-004101
TE Connectivity AMP Connectors

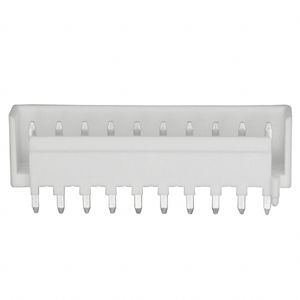

1-1877285-0
