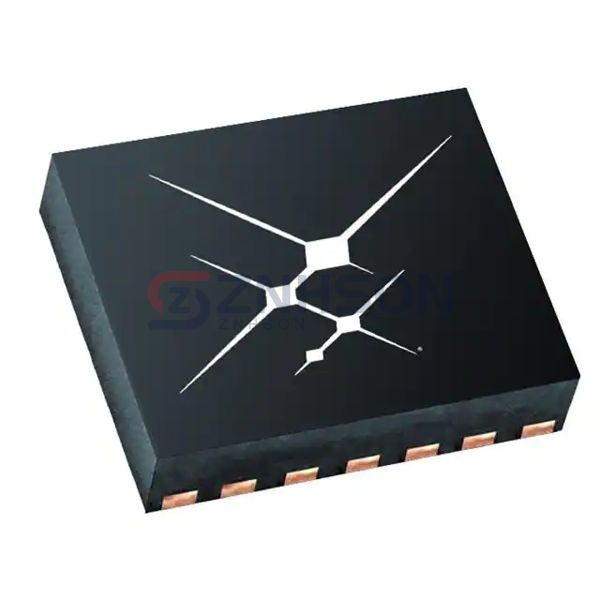

SI8274GB1-IM1
Skyworks Solutions Inc.
Skyworks Solutions Inc.
DGTL ISO 2.5KV GATE DRIVER 14LGA
$6.12
Available to order
Reference Price (USD)
1+
$6.12000
500+
$6.0588
1000+
$5.9976
1500+
$5.9364
2000+
$5.8752
2500+
$5.814
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with Skyworks Solutions Inc. SI8274GB1-IM1 Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 200kV/µs
- Propagation Delay tpLH / tpHL (Max): 75ns, 60ns
- Pulse Width Distortion (Max): 19ns
- Rise / Fall Time (Typ): 10.5ns, 13.3ns
- Current - Output High, Low: 1.8A, 4A
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.2V ~ 30V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 14-VDFN
- Supplier Device Package: 14-QFN (5x5)
- Approval Agency: CQC, CSA, UR, VDE
