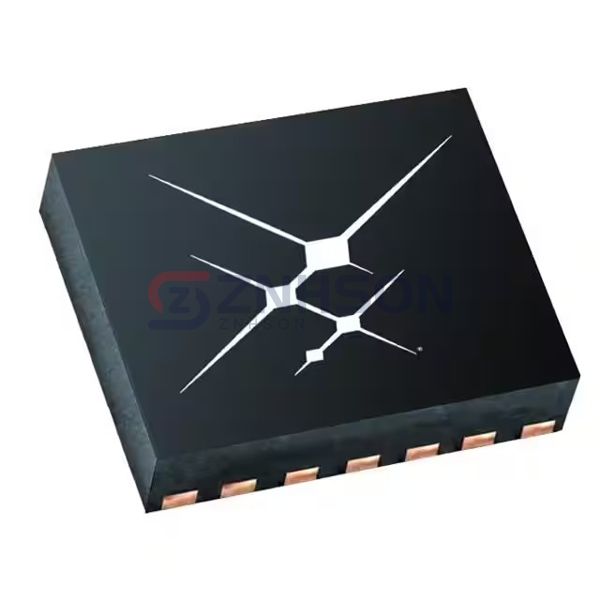

SI8275GAD-IM1
Skyworks Solutions Inc.
Skyworks Solutions Inc.
HIGH CMTI 1 KV 3 V UVLO DUAL ISO
$3.47
Available to order
Reference Price (USD)
1+
$3.46641
500+
$3.4317459
1000+
$3.3970818
1500+
$3.3624177
2000+
$3.3277536
2500+
$3.2930895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Skyworks Solutions Inc. SI8275GAD-IM1 Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 1000Vrms
- Common Mode Transient Immunity (Min): 200kV/µs
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Pulse Width Distortion (Max): 8ns
- Rise / Fall Time (Typ): 10.5ns, 13.3ns
- Current - Output High, Low: 1.8A, 4A
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.2V ~ 30V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 14-VDFN
- Supplier Device Package: 14-DFN (5x5)
- Approval Agency: CQC, CSA, UL, VDE
