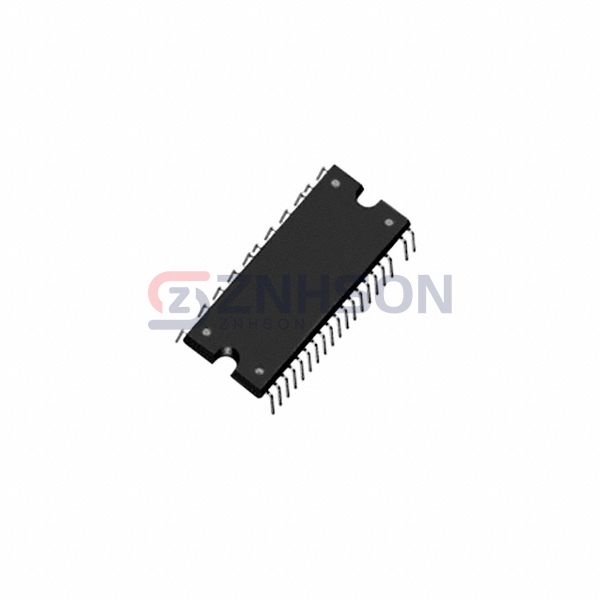

SIM6812M
Sanken
Sanken
IC BRIDGE DRIVER PAR 40DIP
$5.90
Available to order
Reference Price (USD)
1+
$9.75000
15+
$8.77533
30+
$7.99500
105+
$7.21505
255+
$6.63000
510+
$6.04500
1,005+
$5.26500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Sanken SIM6812M series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (3)
- Applications: AC Motors
- Interface: Logic
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): 2Ohm
- Current - Output / Channel: 2.5A
- Current - Peak Output: 3.75A
- Voltage - Supply: 13.5V ~ 16.5V
- Voltage - Load: 400V (Max)
- Operating Temperature: -20°C ~ 100°C (TA)
- Features: Bootstrap Circuit
- Fault Protection: Current Limiting, Over Temperature, UVLO
- Mounting Type: Through Hole
- Package / Case: 40-DIP (0.657", 16.70mm), 29 Leads
- Supplier Device Package: 40-DIP LF2971
