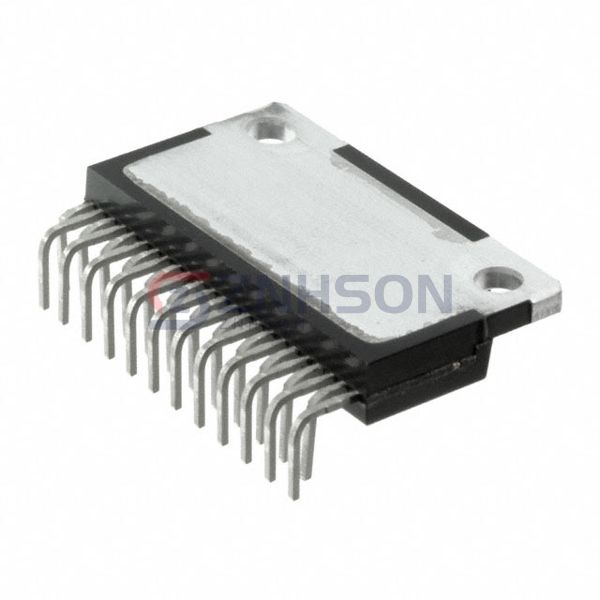

SLA6870MZLF2175
Sanken
Sanken
IC BRIDGE DRIVER PAR 24SIP
$11.33
Available to order
Reference Price (USD)
1+
$11.25000
18+
$10.12500
36+
$9.22500
108+
$8.32500
252+
$7.65000
504+
$6.97500
1,008+
$6.07500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Sanken SLA6870MZLF2175 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (3)
- Applications: AC Motors
- Interface: Logic
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): -
- Current - Output / Channel: 3A
- Current - Peak Output: 4.5A
- Voltage - Supply: 13.5V ~ 16.5V
- Voltage - Load: 400V (Max)
- Operating Temperature: -20°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Current Limiting, Over Temperature, UVLO
- Mounting Type: Through Hole
- Package / Case: 24-SSIP Exposed Pad, Formed Leads
- Supplier Device Package: 24-ZIP LF2175
