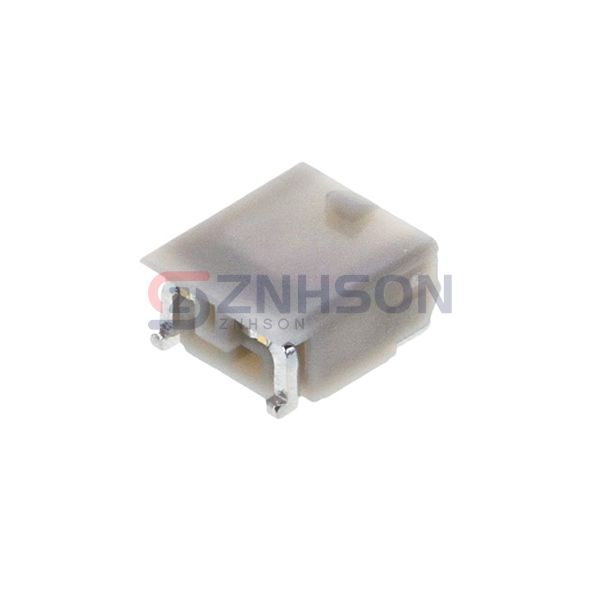

SM02B-SFKH-TF
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 2POS 1.8MM
$0.75
Available to order
Reference Price (USD)
3,000+
$0.34181
6,000+
$0.33041
9,000+
$0.30763
15,000+
$0.30307
30,000+
$0.29623
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SM02B-SFKH-TF JST Sales America Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.071" (1.80mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.138" (3.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 4A
- Voltage Rating: 250V
Related Products
Sullins Connector Solutions
PEC02SAHN
Samtec Inc.
EJH-117-01-L-D-TH
Samtec Inc.

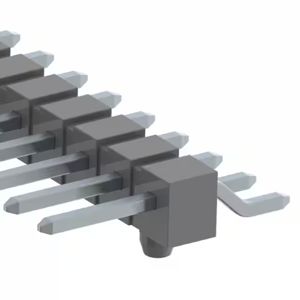

TSM-120-01-T-SH-A-K-TR
Samtec Inc.

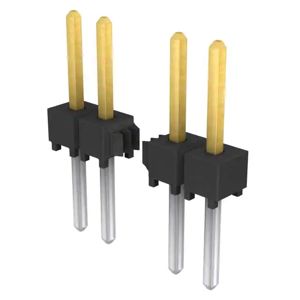

TSW-108-08-L-S
Samtec Inc.
FTSH-110-01-L-DH-C
Amphenol ICC (FCI)

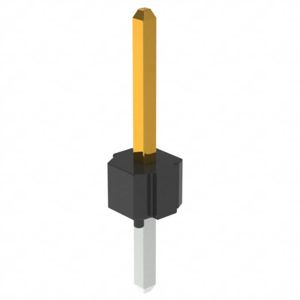

68001-100H
Samtec Inc.

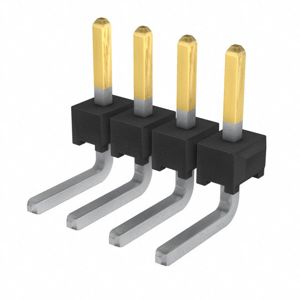

TMM-104-01-F-S-RA
