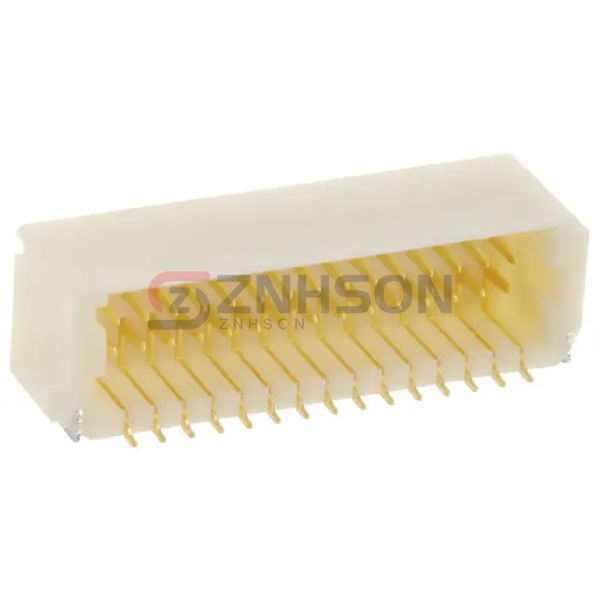

SM30B-SRDS-G-TF(LF)(SN)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.039" (1.00mm)
• Number of Positions: 30
• Number of Rows: 2
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: -
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.217" (5.51mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: -
• Contact Material: Phosphor Bronze
• Insulation Material: Polyamide (PA), Nylon, Glass Filled
• Features: Pick and Place, Solder Retention
• Operating Temperature: -25°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 1A
• Voltage Rating: 50V
