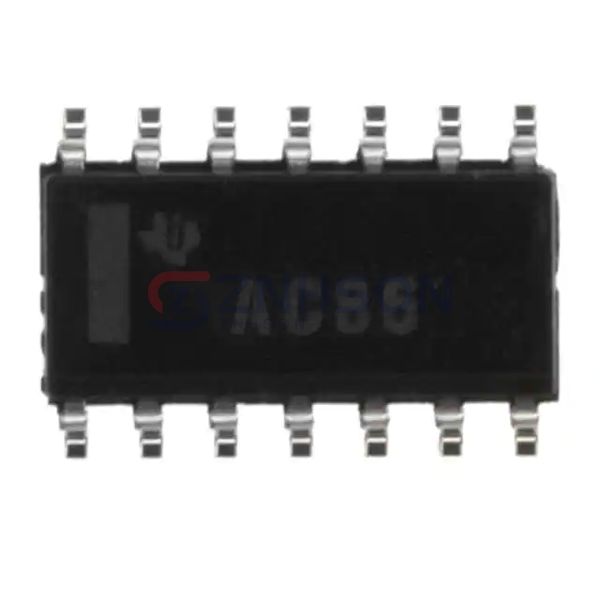

SN74LV02ADBR
Texas Instruments
Texas Instruments
IC GATE NOR 4CH 2-INP 14SSOP
$0.25
Available to order
Reference Price (USD)
2,000+
$0.22475
6,000+
$0.20925
10,000+
$0.20150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust SN74LV02ADBR Logic Gates and Inverters by Texas Instruments to deliver consistent results in any digital setup. Engineered with latch-up immunity, programmable logic, and moisture-resistant coatings, these ICs shine in agricultural tech, HVAC controls, and edge computing. Texas Instruments is your global partner for quality components. Have questions? We re here to help ask about MOQs and certifications!
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 20 µA
- Current - Output High, Low: 12mA, 12mA
- Logic Level - Low: 0.5V
- Logic Level - High: 1.5V
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SSOP
- Package / Case: 14-SSOP (0.209", 5.30mm Width)
