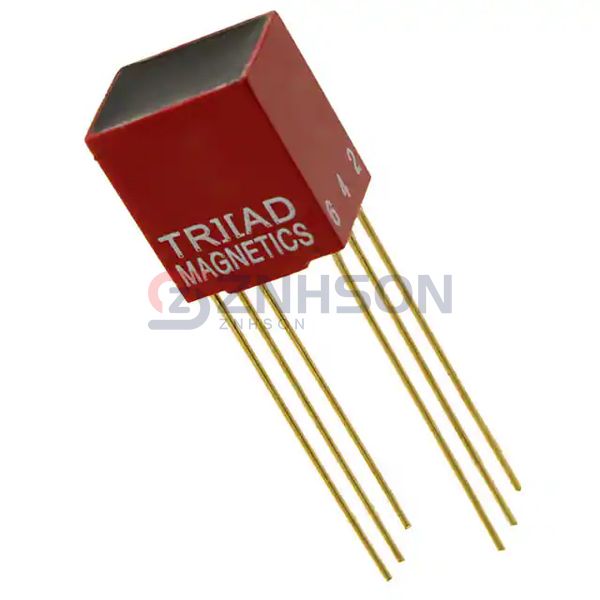

SP-20-B
Triad Magnetics
Triad Magnetics
TRANSF 10K CT/1.2K CT AUDIO
$12.15
Available to order
Reference Price (USD)
672+
$9.87376
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve crystal-clear audio with Triad Magnetics SP-20-B Audio Transformers, designed for versatility and top-notch performance. Perfect for use in studios, theaters, and home audio systems, these transformers ensure optimal signal transfer. Triad Magnetics is your trusted partner for high-end audio components. Reach out today for pricing and availability details.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 2.88:1
- Impedance - Primary (Ohms): 10kCT
- Impedance - Secondary (Ohms): 1.2kCT
- DC Resistance (DCR) - Primary: 1.05kOhm
- DC Resistance (DCR) - Secondary: 200Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
