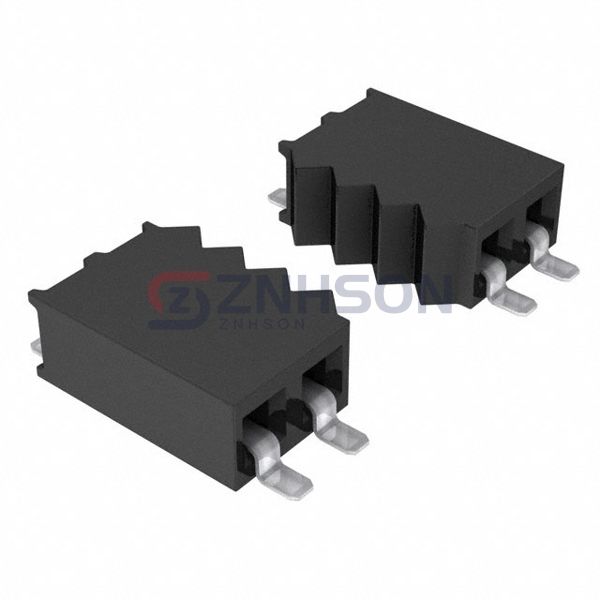

SSM-109-S-SH
Samtec Inc.
Samtec Inc.
CONN RCPT .100" 9POS SNGL HORZ
$5.41
Available to order
Reference Price (USD)
1+
$5.41000
500+
$5.3559
1000+
$5.3018
1500+
$5.2477
2000+
$5.1936
2500+
$5.1395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with SSM-109-S-SH Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. Designed for high performance, these connectors feature easy mating, long lifespan, and EMI shielding. Suitable for robotics, IoT, and automation systems. Reach out today to discuss your requirements and get a customized solution!
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 9
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.125" (3.18mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: -
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: 405VAC, 572VDC
