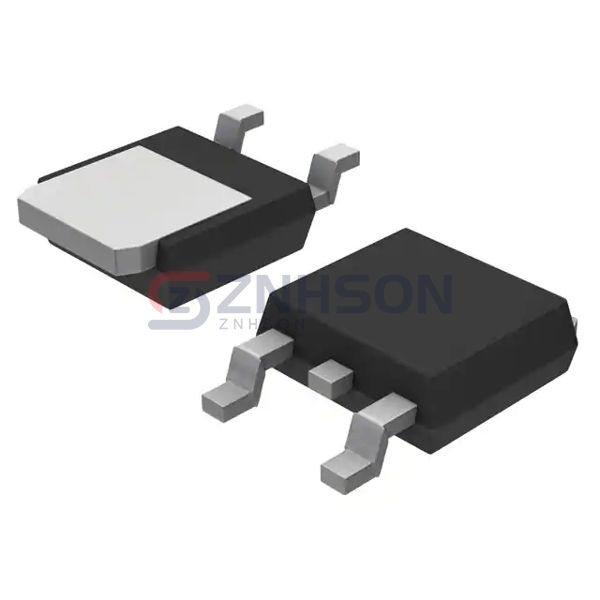

STD5406NT4G
onsemi
onsemi
MOSFET N-CH 40V 12.2A DPAK
$1.07
Available to order
Reference Price (USD)
1+
$1.07000
500+
$1.0593
1000+
$1.0486
1500+
$1.0379
2000+
$1.0272
2500+
$1.0165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover STD5406NT4G, a versatile Transistors - FETs, MOSFETs - Single solution from onsemi, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 12.2A (Ta), 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 10mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 45 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2500 pF @ 32 V
- FET Feature: -
- Power Dissipation (Max): 3W (Ta), 100W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
