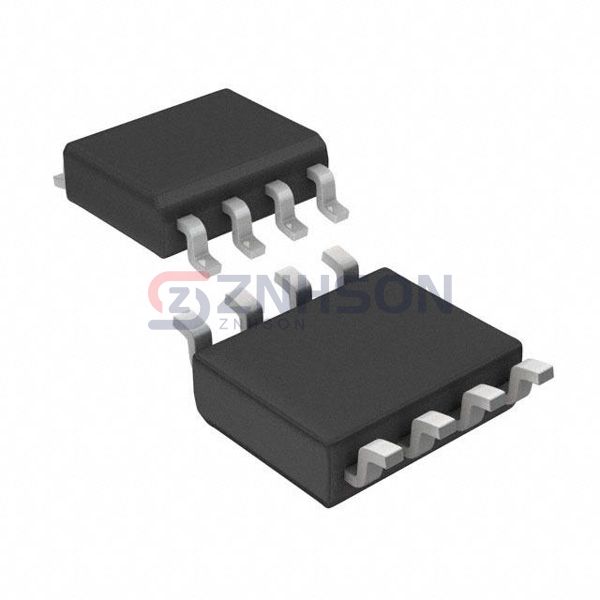

STGAP2SCM
STMicroelectronics
STMicroelectronics
DGTL ISO
$1.56
Available to order
Reference Price (USD)
2,000+
$1.58270
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your system s efficiency with STMicroelectronics STGAP2SCM Gate Driver Isolators, built for rugged industrial environments. Highlights include high-speed data transfer, thermal shutdown protection, and robust construction. Ideal for servo drives, renewable energy converters, and medical devices, these isolators deliver consistent performance. Let s discuss your needs reach out today!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 1700VDC
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Pulse Width Distortion (Max): 20ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Current - Output High, Low: 4A, 4A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
- Approval Agency: -
Related Products
Texas Instruments
UCC21521CDW
Skyworks Solutions Inc.
SI8285CC-ISR
Texas Instruments
UCC5350SBDR
Skyworks Solutions Inc.
SI8274AB4D-IM1
Skyworks Solutions Inc.
SI823H8AB-IS1
Skyworks Solutions Inc.
SI823H3BB-IS1
Texas Instruments
UCC21542DWR
Texas Instruments

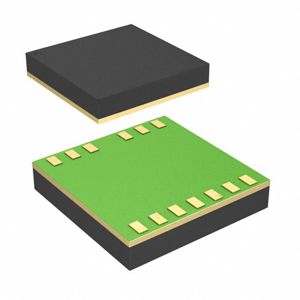

UCC20225AQNPLTQ1
onsemi

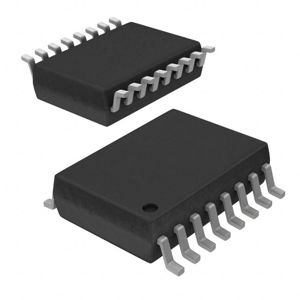

FOD8316
