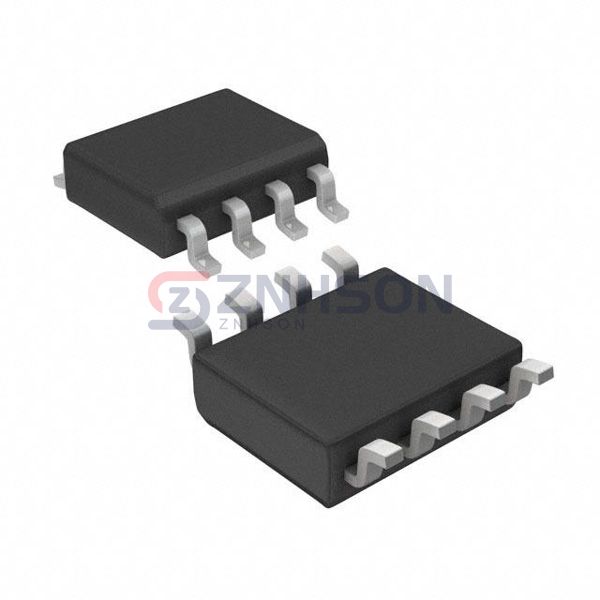

STGAP2SCMTR
STMicroelectronics
STMicroelectronics
DGTL ISO
$2.78
Available to order
Reference Price (USD)
2,500+
$1.58270
5,000+
$1.52320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with STMicroelectronics STGAP2SCMTR Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 1700VDC
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Pulse Width Distortion (Max): 20ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Current - Output High, Low: 4A, 4A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
- Approval Agency: -
