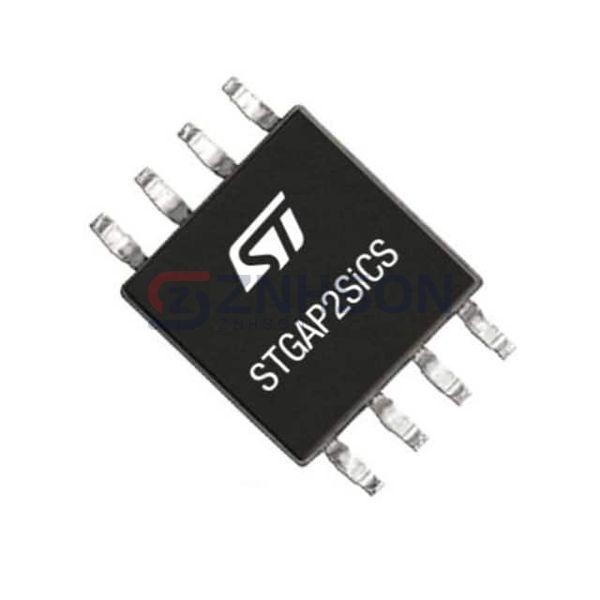

STGAP2SICS
STMicroelectronics
STMicroelectronics
GALVANICALLY ISOLATED 4 A SINGLE
$4.00
Available to order
Reference Price (USD)
1+
$4.00000
500+
$3.96
1000+
$3.92
1500+
$3.88
2000+
$3.84
2500+
$3.8
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your system s efficiency with STMicroelectronics STGAP2SICS Gate Driver Isolators, built for rugged industrial environments. Highlights include high-speed data transfer, thermal shutdown protection, and robust construction. Ideal for servo drives, renewable energy converters, and medical devices, these isolators deliver consistent performance. Let s discuss your needs reach out today!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 90ns, 90ns
- Pulse Width Distortion (Max): 20ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Current - Output High, Low: 4A, 4A
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 8-SO
- Approval Agency: UL
