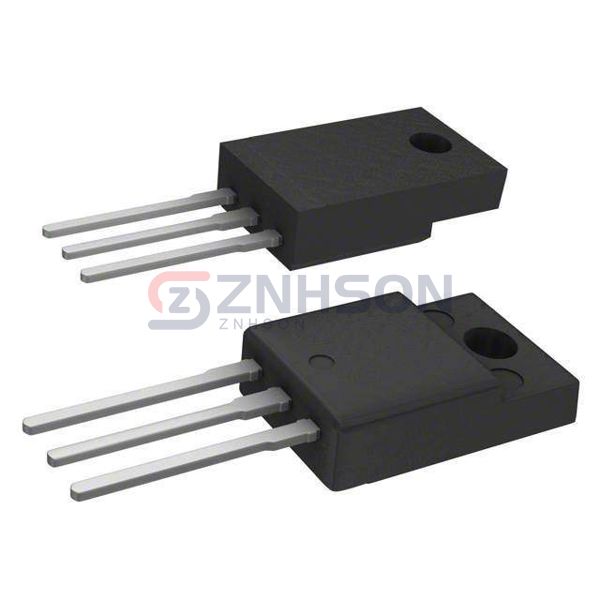

STGF10NC60KD
STMicroelectronics
STMicroelectronics
IGBT 600V 9A 25W TO220FP
$1.70
Available to order
Reference Price (USD)
1+
$1.30000
50+
$1.10260
100+
$0.90560
500+
$0.74812
1,000+
$0.59063
2,500+
$0.55125
5,000+
$0.52500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance STGF10NC60KD Single IGBTs from STMicroelectronics, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, STGF10NC60KD ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 9 A
- Current - Collector Pulsed (Icm): 30 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 5A
- Power - Max: 25 W
- Switching Energy: 55µJ (on), 85µJ (off)
- Input Type: Standard
- Gate Charge: 19 nC
- Td (on/off) @ 25°C: 17ns/72ns
- Test Condition: 390V, 5A, 10Ohm, 15V
- Reverse Recovery Time (trr): 22 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FP
