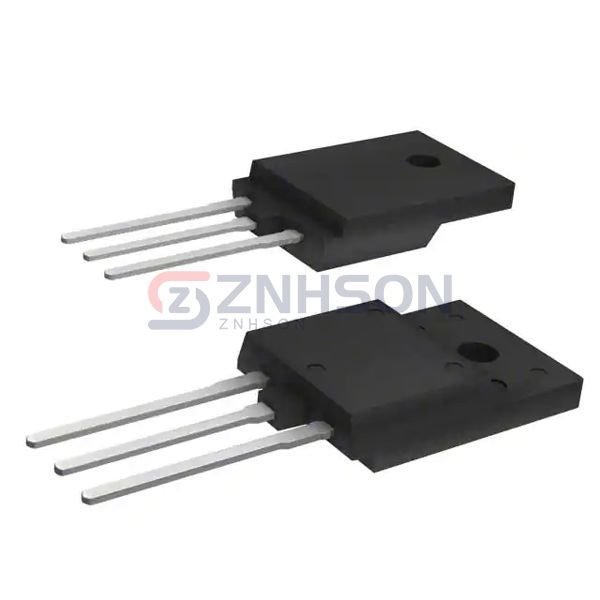

STGFW20V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 40A 52W TO-3PF
$2.89
Available to order
Reference Price (USD)
1+
$3.57000
30+
$3.06300
120+
$2.68500
510+
$2.31961
1,020+
$1.99200
2,520+
$1.90800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGFW20V60DF Single IGBT by STMicroelectronics is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust STMicroelectronics for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 20A
- Power - Max: 52 W
- Switching Energy: 200µJ (on), 130µJ (off)
- Input Type: Standard
- Gate Charge: 116 nC
- Td (on/off) @ 25°C: 38ns/149ns
- Test Condition: 400V, 20A, 15V
- Reverse Recovery Time (trr): 40 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
