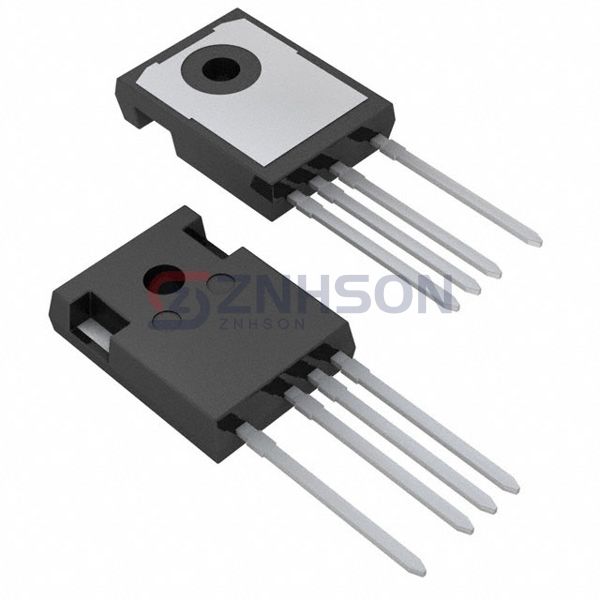

STGW100H65FB2-4
STMicroelectronics
STMicroelectronics
TRENCH GATE FIELD-STOP, 650 V, 1
$8.85
Available to order
Reference Price (USD)
1+
$8.85000
500+
$8.7615
1000+
$8.673
1500+
$8.5845
2000+
$8.496
2500+
$8.4075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGW100H65FB2-4 Single IGBT by STMicroelectronics is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust STMicroelectronics for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 145 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 100A
- Power - Max: 441 W
- Switching Energy: 1.06mJ (on), 1.14mJ (off)
- Input Type: Standard
- Gate Charge: 288 nC
- Td (on/off) @ 25°C: 23ns/141ns
- Test Condition: 400V, 100A, 3.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: TO-247-4
