STGW80V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 120A 469W TO247
$7.51
Available to order
Reference Price (USD)
1+
$7.71000
30+
$6.72000
120+
$5.91000
510+
$5.22000
1,020+
$4.62000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance STGW80V60DF Single IGBTs from STMicroelectronics, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, STGW80V60DF ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 240 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 80A
- Power - Max: 469 W
- Switching Energy: 1.8mJ (on), 1mJ (off)
- Input Type: Standard
- Gate Charge: 448 nC
- Td (on/off) @ 25°C: 60ns/220ns
- Test Condition: 400V, 80A, 5Ohm, 15V
- Reverse Recovery Time (trr): 60 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Exposed Pad
- Supplier Device Package: TO-247
Related Products
onsemi
NGB8207ANT4G
IXYS
IXYP15N65C3D1
Renesas Electronics America Inc
RJP3045DPP-B1#T2F
IXYS
IXYF30N450
IXYS
IXYX110N120B4
Microchip Technology
APT100GN60LDQ4G
IXYS
IXGP12N120A3
Alpha & Omega Semiconductor Inc.
AOK50B65H1
Rohm Semiconductor

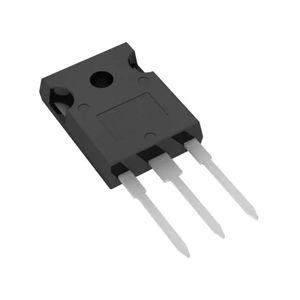

RGS00TS65DHRC11
