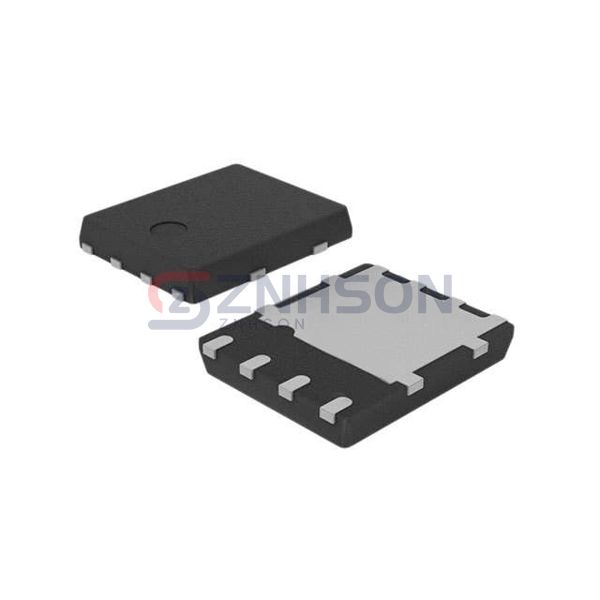

STL120N4F6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 55A POWERFLAT
$2.48
Available to order
Reference Price (USD)
3,000+
$0.88775
6,000+
$0.85860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with STL120N4F6AG, a premium Transistors - FETs, MOSFETs - Single from STMicroelectronics. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust STL120N4F6AG for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 55A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.6mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 63 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3700 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 96W (Tc)
- Operating Temperature: 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Infineon Technologies
AUIRFP4110
Infineon Technologies
IPU60R3K4CEAKMA1
Linear Integrated Systems, Inc.
SST215 SOT-143 4L
Vishay Siliconix
SIHB12N60ET1-GE3
Panjit International Inc.
PJS6401_S1_00001
STMicroelectronics
STW33N60M6
Infineon Technologies
IRF9333TRPBF
onsemi
NVMFSC0D9N04CL
Microchip Technology

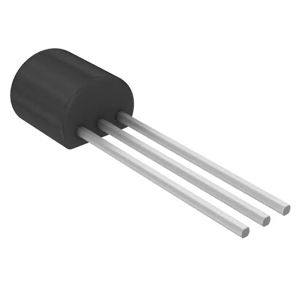

VP2106N3-G
