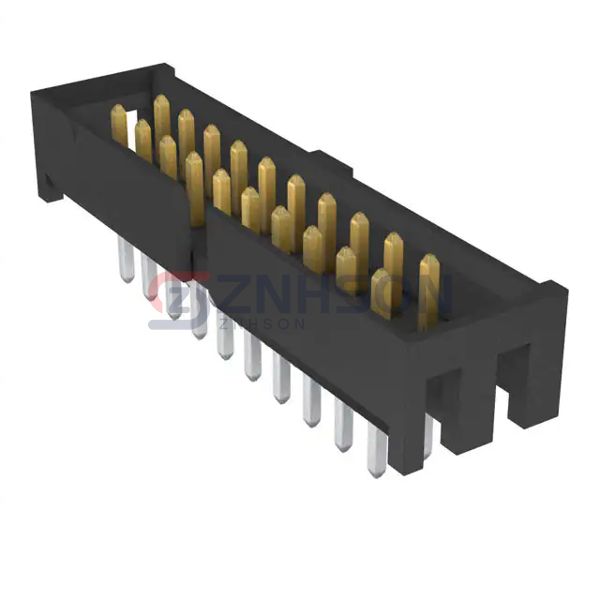

STMM-110-02-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 20POS 2MM
$6.06
Available to order
Reference Price (USD)
1+
$3.48000
22+
$3.33591
110+
$2.78000
506+
$2.36300
1,012+
$2.01550
5,016+
$1.80700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with STMM-110-02-L-D Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.302" (7.67mm)
- Insulation Height: 0.190" (4.83mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-132-01-L-DH-A-TR
Molex
0436500526
Samtec Inc.
TSM-134-01-SM-SH
Samtec Inc.
BDL-133-G-E
Samtec Inc.

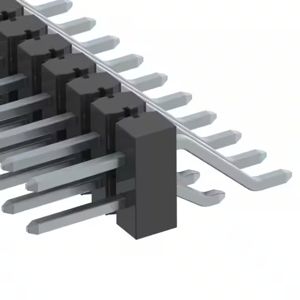

TSM-118-01-TM-DH
Samtec Inc.
TMM-108-04-TM-D-SM
TE Connectivity AMP Connectors
3-1445052-0
Samtec Inc.

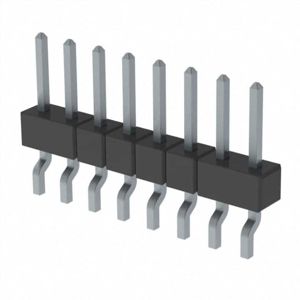

MMT-108-02-T-SH
