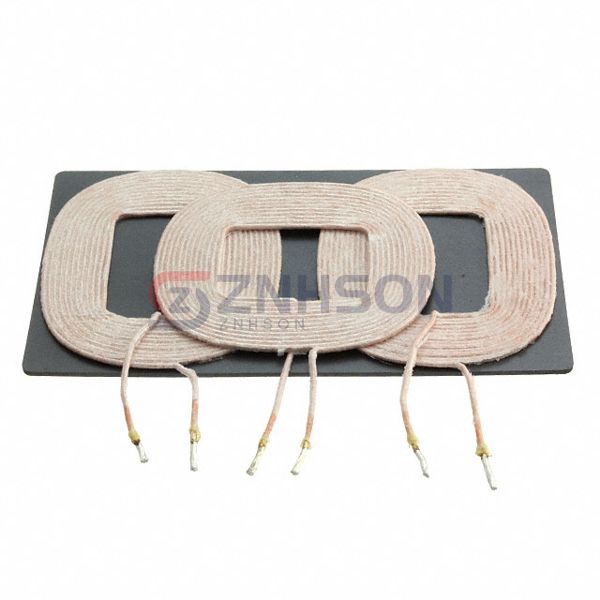

SWC10056AA120-500
Laird-Signal Integrity Products
Laird-Signal Integrity Products
TRANSMITTER 3 COIL 1 LAYER
$15.01
Available to order
Reference Price (USD)
1+
$11.29000
10+
$10.47300
100+
$8.56340
500+
$8.01794
1,000+
$7.63614
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your wireless charging systems with SWC10056AA120-500 Wireless Charging Coils by Laird-Signal Integrity Products. These high-performance coils ensure rapid and stable charging for a variety of applications, including medical devices and automotive accessories. With superior materials and engineering, our coils stand out for their reliability. Want to explore the possibilities? Contact our team for expert advice!
Specifications
- Product Status: Active
- Function: Transmitter
- Type: 3 Coil, 1 Layer
- Inductance: 12.5µH, 11.5µH, 12.5µH
- Tolerance: ±10%
- DC Resistance (DCR): 65mOhm Max
- Q @ Freq: 90 @ 100kHz
- Current Rating (Amps): -
- Current - Saturation (Isat): -
- Frequency - Self Resonant: -
- Operating Temperature: -40°C ~ 125°C
- Size / Dimension: 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm)
Related Products
Würth Elektronik
760308104120
Signal Transformer
WTSC-6R3K-A11
Würth Elektronik
760308103204
TDK Corporation
WT545490-11K2-FS
Abracon LLC

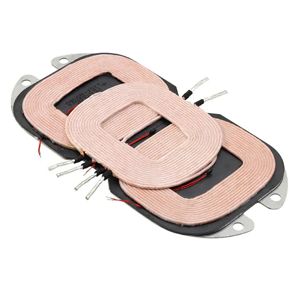

AWCCA-107T52H40-C01-B
TDK Corporation

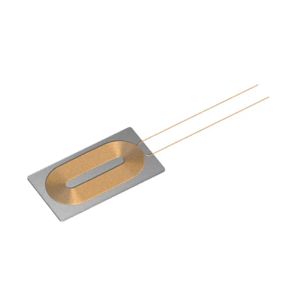

WR221230-36M8-G
Würth Elektronik

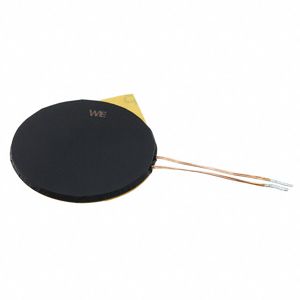

760308101303
TDK Corporation

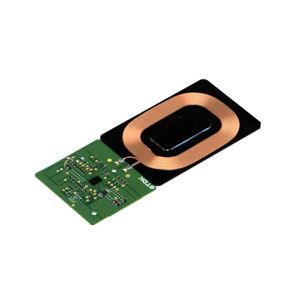

WRM483265-10F5-12V-G
