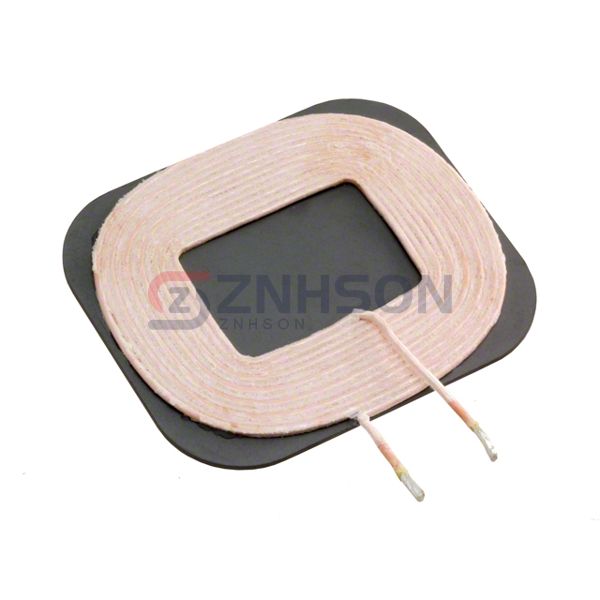

SWC5547AK120-500
Laird-Signal Integrity Products
Laird-Signal Integrity Products
TX 1 COIL 1 LAYER 12.5UH
$6.14
Available to order
Reference Price (USD)
1+
$6.99000
10+
$6.37500
100+
$4.39000
500+
$4.01802
1,000+
$3.77000
2,500+
$3.64598
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the future of charging with SWC5547AK120-500 Wireless Charging Coils from Laird-Signal Integrity Products. These coils are built with precision and efficiency, offering fast and safe charging for a wide range of applications. From home appliances to automotive accessories, our coils provide consistent performance. Want to learn more about how our coils can benefit your project? Get in touch with our experts today!
Specifications
- Product Status: Active
- Function: Transmitter
- Type: 1 Coil, 1 Layer
- Inductance: 12.5µH
- Tolerance: ±10%
- DC Resistance (DCR): 65mOhm Max
- Q @ Freq: 90 @ 100kHz
- Current Rating (Amps): -
- Current - Saturation (Isat): -
- Frequency - Self Resonant: -
- Operating Temperature: -40°C ~ 125°C
- Size / Dimension: 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm)
