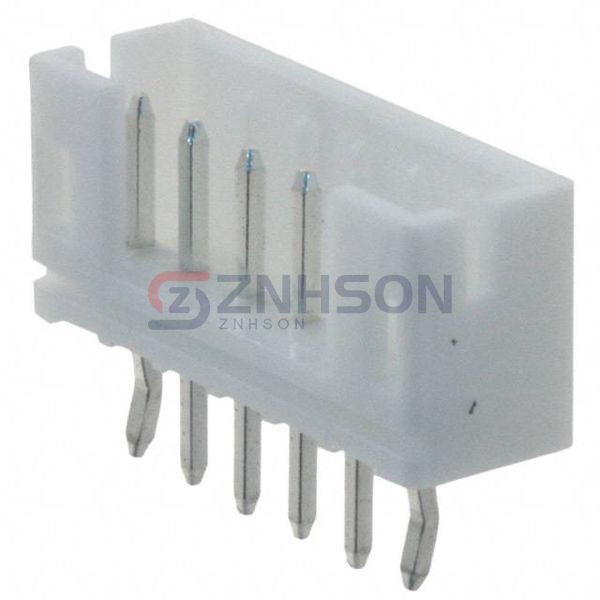

SWR201-NRTN-S06-SA-WH
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 6POS 2MM
$0.24
Available to order
Reference Price (USD)
1+
$0.24000
10+
$0.23000
100+
$0.16100
500+
$0.13798
1,000+
$0.11498
5,000+
$0.09855
10,000+
$0.09490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SWR201-NRTN-S06-SA-WH Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 125V
Related Products
Sullins Connector Solutions
PBC12SAAN
Samtec Inc.
TMM-114-06-T-S-SM
JAE Electronics
IL-G-13P-S3L2-SA
Samtec Inc.
TFM-150-01-SM-D-RA
Samtec Inc.
ZSS-110-04-L-D-710
Harwin Inc.
G125-MV11005L1P
Samtec Inc.
FTSH-115-01-SM-DH
Samtec Inc.

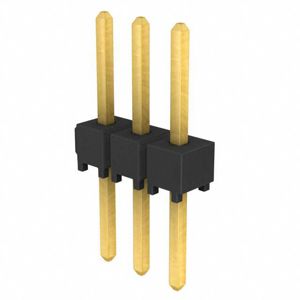

TSW-103-26-G-S
