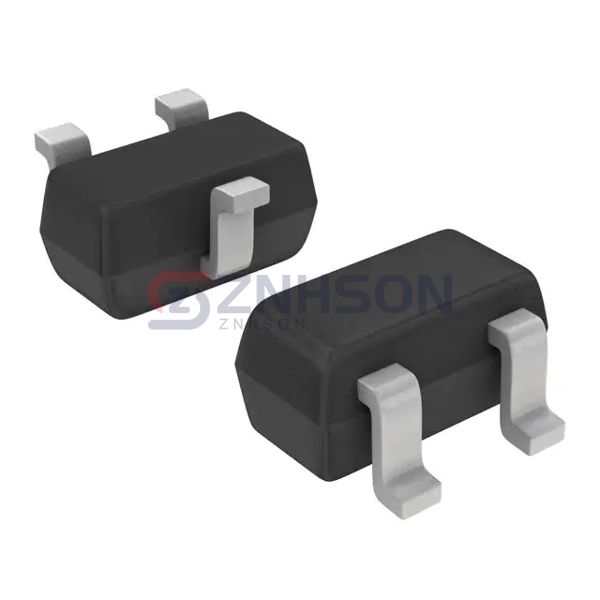

SZESDR0502BT1G
onsemi
onsemi
TVS DIODE 5VWM 15VC SC75 SOT416
$0.49
Available to order
Reference Price (USD)
3,000+
$0.11781
6,000+
$0.11156
15,000+
$0.10219
30,000+
$0.09594
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your circuits effortlessly with onsemi's SZESDR0502BT1G TVS Diodes, designed for high-speed data lines and power applications. These diodes feature excellent clamping performance, low dynamic resistance, and high thermal stability. Suitable for telecom infrastructure, automotive electronics, and more, they ensure reliable operation under stress. Get started with onsemi send us your inquiry!
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 2
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 5.8V
- Voltage - Clamping (Max) @ Ipp: 15V
- Current - Peak Pulse (10/1000µs): 2A (8/20µs)
- Power - Peak Pulse: 20W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 0.5pF @ 1MHz, 0.25pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
