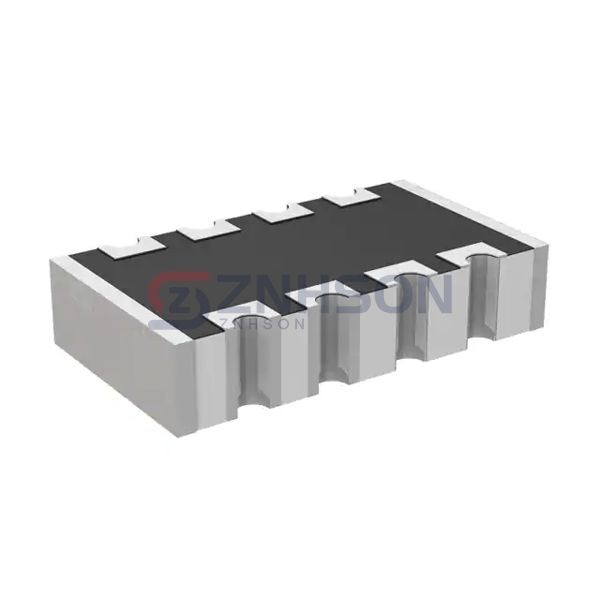

TC164-JR-0775RL
YAGEO
YAGEO
RES ARRAY 4 RES 75 OHM 1206
$0.02
Available to order
Reference Price (USD)
5,000+
$0.01527
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with YAGEO's TC164-JR-0775RL resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every TC164-JR-0775RL unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 75
- Tolerance: ±5%
- Number of Resistors: 4
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 8
- Power Per Element: 62.5mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Applications: DDRAM, SDRAM
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric), Concave, Long Side Terminals
- Supplier Device Package: -
- Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max): 0.028" (0.70mm)
