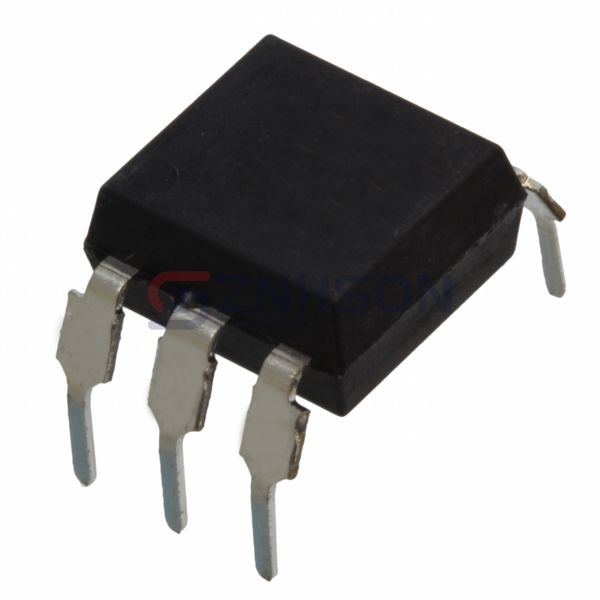

TCDT1123G
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 5KV TRANS 6DIP
$0.68
Available to order
Reference Price (USD)
1+
$0.67000
10+
$0.52300
25+
$0.43560
100+
$0.37520
250+
$0.33500
500+
$0.28810
2,000+
$0.20100
6,000+
$0.18760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronics with Vishay Semiconductor Opto Division's TCDT1123G Optoisolators - Transistor, Photovoltaic Output, offering superior isolation and signal transmission. These components are perfect for applications requiring high voltage separation, such as power supplies, motor controls, and PLC systems. With robust construction and long-term durability, our optoisolators ensure seamless performance in demanding environments. Interested in learning more? Submit your inquiry now and let our experts assist you!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 100% @ 10mA
- Current Transfer Ratio (Max): 200% @ 10mA
- Turn On / Turn Off Time (Typ): 7µs, 5µs
- Rise / Fall Time (Typ): 4.2µs, 4.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
Related Products
Everlight Electronics Co Ltd

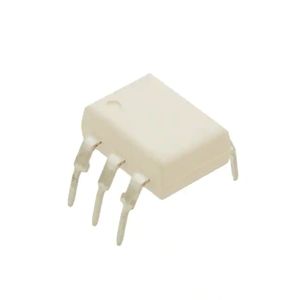

4N37-V
Broadcom Limited
5962-8947702KPA
Vishay Semiconductor Opto Division

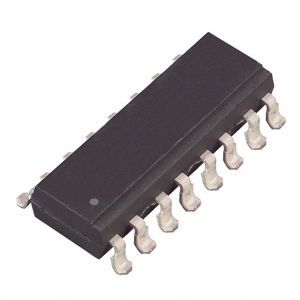

ILQ2-X009
Vishay Semiconductor Opto Division

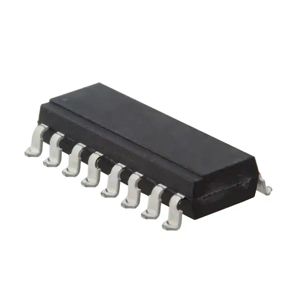

ILQ55-X009
Broadcom Limited
ACPL-824-560E
Broadcom Limited

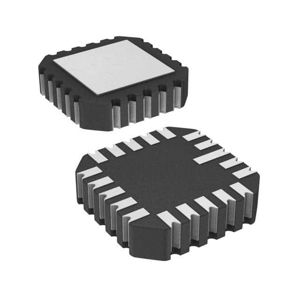

5962-8978504K2A
Broadcom Limited
HCPL-0454-500E
Renesas Electronics America Inc

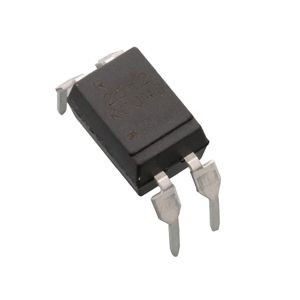

PS2565L1-1Y-A
Isocom Components 2004 LTD

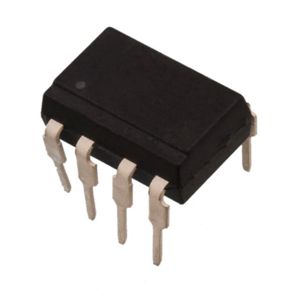

ISP825X
