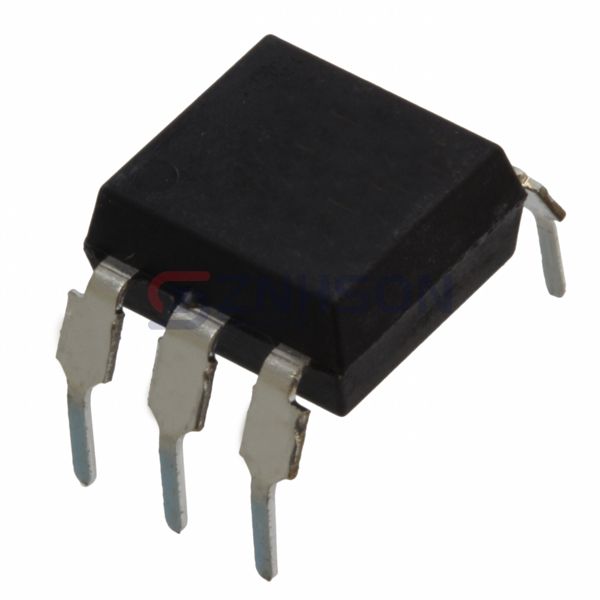

TCDT1124G
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 5KV TRANS 6DIP
$0.72
Available to order
Reference Price (USD)
1+
$0.71000
10+
$0.55000
25+
$0.45840
100+
$0.39480
250+
$0.35252
500+
$0.30316
2,000+
$0.21150
6,000+
$0.19740
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's reliability with TCDT1124G Optoisolators by Vishay Semiconductor Opto Division, featuring advanced Photovoltaic Output technology. Perfect for use in audio equipment, lighting controls, and instrumentation, these isolators deliver high voltage isolation and low signal distortion. Vishay Semiconductor Opto Division guarantees components that meet rigorous industry standards. Don't wait get in touch today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 160% @ 10mA
- Current Transfer Ratio (Max): 320% @ 10mA
- Turn On / Turn Off Time (Typ): 4µs, 4.7µs
- Rise / Fall Time (Typ): 4µs, 4.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
